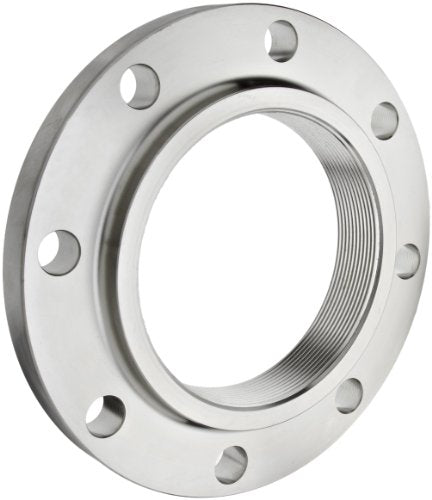

Merit Brass A435-64 Stainless Steel ANSI Threaded Flange 150 PSI 4 Inch FNPT

Product Description

The Merit Brass A435-64 threaded flange is a durable component ideal for various plumbing and industrial applications. It's crafted from high-grade 304/304L stainless steel, ensuring longevity and resistance to corrosion.

• Made in accordance with ASME SA182 and ANSI B16.5 standards.
• Features a raised face design, facilitating easier installation and maintenance.
• Supports pressures up to 150 pounds per square inch, suitable for moderate pressure applications.

Product Highlights

This flange offers a reliable solution for pipe connections, enhancing system efficiency and safety. Its threaded connection type allows for secure and easy installation without welding.

Product Information

Standard Information

• Material: 304/304L Stainless Steel
• Type: Raised Face

Technical Specifications

• Outside Diameter: 9 inches
• Connection Type: FNPT
• Number of Bolts: 8
• Hub Diameter: 5.31 inches
• Bolt Hole Diameter: 0.75 inches
• Length Through Hub: 1.31 inches
• Bolt Circle Diameter: 7.5 inches
• Thickness: 0.94 inches
