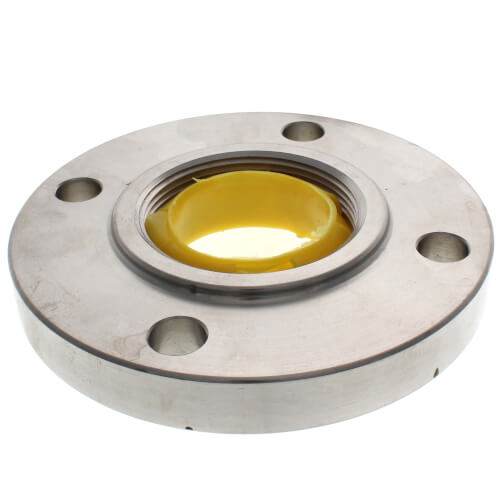

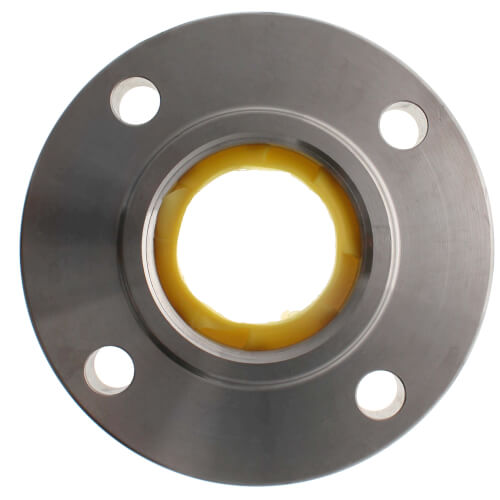

Merit Brass A435-48 Stainless Steel Threaded Flange 3 Inch Class 150

Product Description

The Merit Brass A435-48 threaded flange is a high-quality piping component designed for secure and efficient pipe connections. This 3-inch nominal size flange is crafted from 304/304L stainless steel, ensuring durability and corrosion resistance. It is ideal for a wide range of industrial applications.

• Raised face design ensures proper sealing under high pressure.
• ANSI B16.5 certified, meeting rigorous standards for quality and performance.
• Threaded connection type allows for easy installation without welding.

Product Highlights

The flange features a bolt circle diameter of six inches and comes with four bolt holes, making it compatible with standard bolts. It is valuable for systems operating at 150 pounds per square inch, making it a versatile choice for both commercial and industrial setups.

Product Information

Technical Specifications

• Bolt Circle Diameter: 6 inches
• Bolt Hole Diameter: 0.75 inches
• Connection Type: FNPT
• Hub Diameter: 4.25 inches
• Outside Diameter: 7.5 inches
• Pressure Class: Class 150
• Material Specifications: ASTM A182
• Standards/Certifications: ASME SA182, ANSI B16.5
