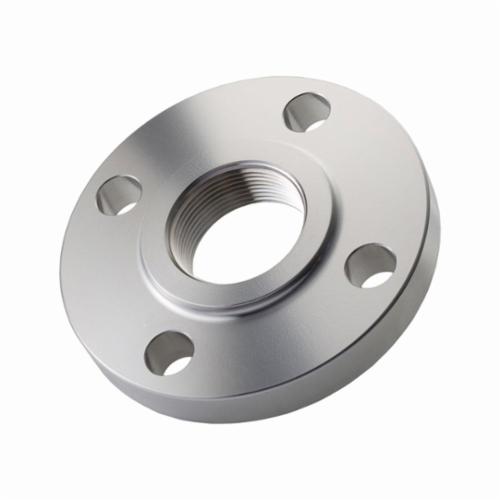

Merit Brass A435-20 Raised Face Pipe Flange 1-1/4 in Nominal 304/304L Stainless 150 lb

Product Description

Merit Brass Raised Face Pipe Flange, MPN A435-20, is designed for managing pipe systems effectively. This flange has a nominal size of 1-1/4 inches and is made from 304/304L stainless steel. It provides a reliable threaded connection and is rated for 150 lb pressure, making it suitable for various plumbing applications.

• Nominal Size: 1-1/4 inches
• Material: 304/304L Stainless Steel
• Connection Type: Threaded

Product Highlights

This flange is used in plumbing to connect pipes securely while allowing easy maintenance and replacement.

Product Information

Standard Information

• Manufacturer: Merit Brass
• Part Number: A435-20

Technical Specifications

• Thickness: 0.62 inches
• Bolt Circle Diameter: 3-1/2 inches
• Bolt Hole Size: 1/2 inches
• Outside Diameter: 4.62 inches
• Hub Diameter: 2.31 inches
• Length Through Hub: 0.81 inches
• Number of Bolt Holes: 4
• Pressure Class: 150 lb
• Domestic/Import: Import
