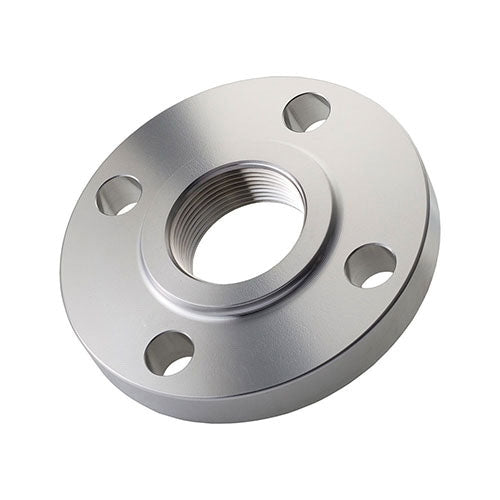

Merit Brass A435-16 Stainless Steel Threaded Flange Class 150 1 Inch FNPT

Product Description

The Merit Brass A435-16 Stainless Steel Threaded Flange is a high-quality piping component designed for secure and leak-free connections. Manufactured with precision from 304/304L stainless steel, this flange meets the stringent standards of ASME SA182 and ANSI B16.5, ensuring reliability and durability in various industrial applications.

• Designed for easy installation with a threaded connection type.
• Features a raised face with a bolt circle diameter of 3.12 inches.
• Supports a pressure class of 150, suitable for moderate pressure applications.

Product Highlights

This flange facilitates straightforward installations and maintenance, made to withstand consistent use in demanding environments.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: A435-16

Technical Specifications

• Material: 304/304L Stainless Steel
• Connection Type: FNPT
• Outside Diameter: 4-1/4 inches
• Bolt Circle Diameter: 3.12 inches
• Bolt Hole Diameter: 0.62 inches
• Hub Diameter: 1.94 inches
• Length Through Hub: 0.69 inches
• Thickness: 0.56 inches
