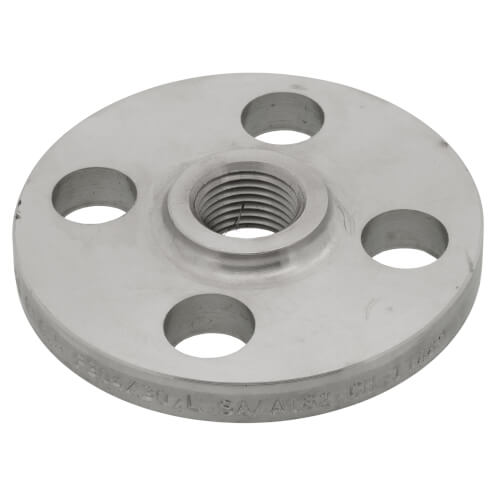

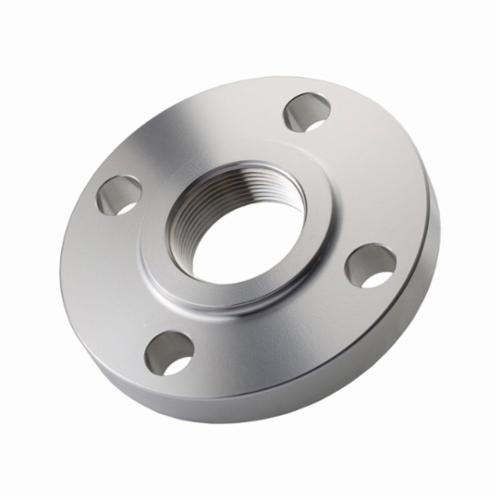

MERIT BRASS A435-08 Stainless Steel Threaded Flange 150 lb 1/2 in

Product Description

The Merit Brass A435-08 is a high-quality stainless steel threaded flange designed for secure and reliable pipe connections. With a pressure class of 150 lb, this flange is suitable for a wide range of industrial applications.

• Comes in a 1/2 in size with FNPT connection type, ensuring compatibility with similar pipe sizes.
• Features a raised face design which helps in providing additional sealing and strength.
• Constructed from 304/304L stainless steel for excellent corrosion resistance.

Product Highlights

This threaded flange is crafted following the stringent standards of ASME SA182 and ANSI B16.5, guaranteeing durability and reliability. Its forged construction enhances structural integrity and longevity.

Technical Specifications

• Bolt Circle Diameter: 2.38 in
• Bolt Hole Diameter: 0.62 in
• Connection Size: 1/2 in
• Connection Type: FNPT
• Outside Diameter: 3-1/2 in
• Pressure Class: Class 150
• Thickness: 0.44 in
• Material Specifications: ASTM A182
