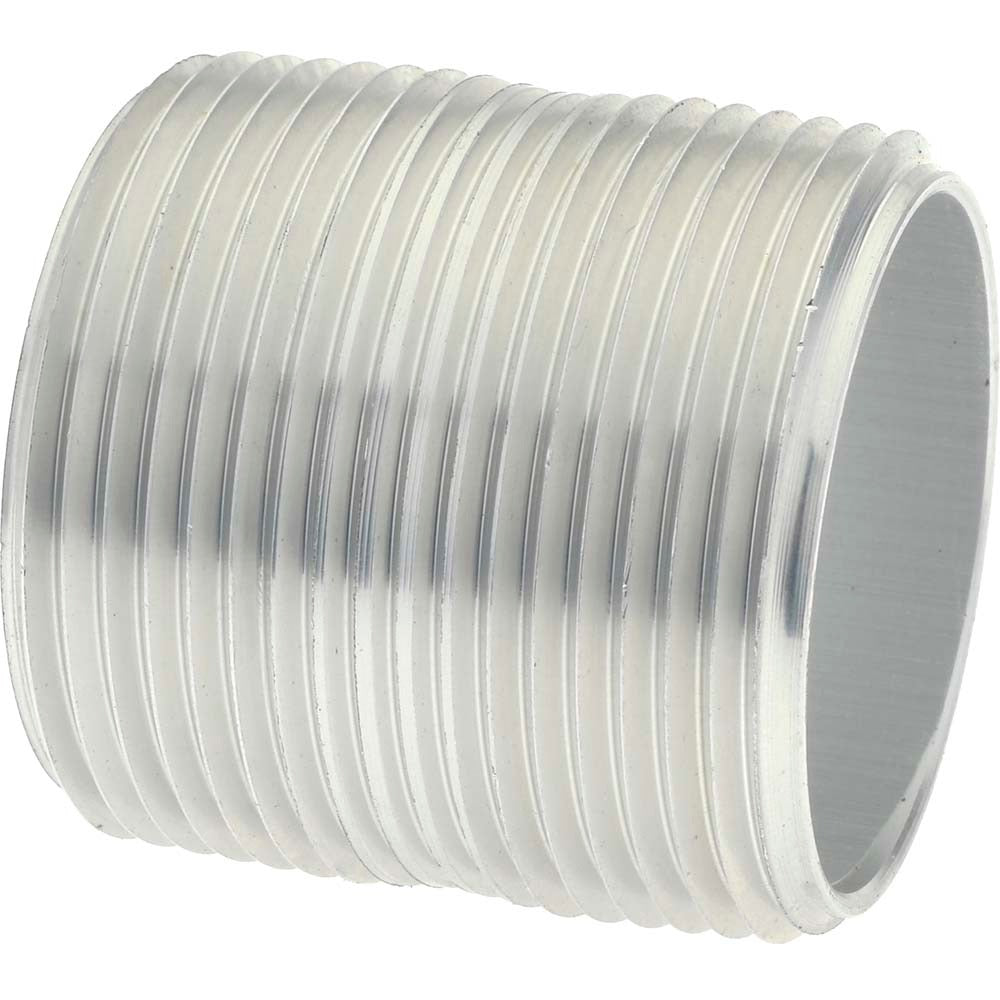

Merit Brass 8020-001 Aluminum Pipe Nipple Sch 40 6061

Product Description

The MERIT BRASS 8020-001 is a Schedule 40 aluminum pipe nipple manufactured from 6061 aluminum alloy. It measures 1-1/4 inches in nominal pipe size with an overall length of 1-5/8 inches and is threaded on both ends for direct connection to fittings, valves, or pipe sections. At 0.09 pounds, this is a lightweight fitting suited for low-weight installations where corrosion resistance matters. Plumbers, pipefitters, and mechanical contractors install this type of nipple in fluid and gas distribution systems where aluminum construction offers an advantage over steel or brass in corrosive or weight-sensitive environments.

This pipe nipple is used in residential and light commercial piping applications. Its short close-nipple configuration is typical in tight-clearance installations where a standard length nipple will not fit. The threaded-on-both-ends design allows it to connect two female-threaded fittings back to back. Applications include water distribution, compressed air, and certain chemical service lines where 6061 aluminum is a compatible material. It meets OSHA standards and carries an UNSPSC classification of 40173300.

Key Features

• 6061 aluminum alloy construction for corrosion resistance and reduced weight
• Schedule 40 wall thickness for standard-duty pressure service
• Threaded on both ends for straightforward make-up with NPT fittings
• Short 1-5/8 inch length suits tight-clearance and close-coupled installations
• Meets OSHA standards for applicable piping system use
• Lightweight at 0.09 pounds, minimizing load on overhead or suspended pipe runs

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 40 NPT piping systems using 1-1/4 inch nominal pipe size connections.

Installation Notes

This fitting is installed by licensed plumbers or pipefitters in accordance with applicable codes such as the IPC or IFGC depending on the service. Shut off and depressurize the system fully before removing or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape compatible with the service fluid before making up the joint. Do not overtighten threaded aluminum fittings, as the material is more susceptible to thread damage than steel.
