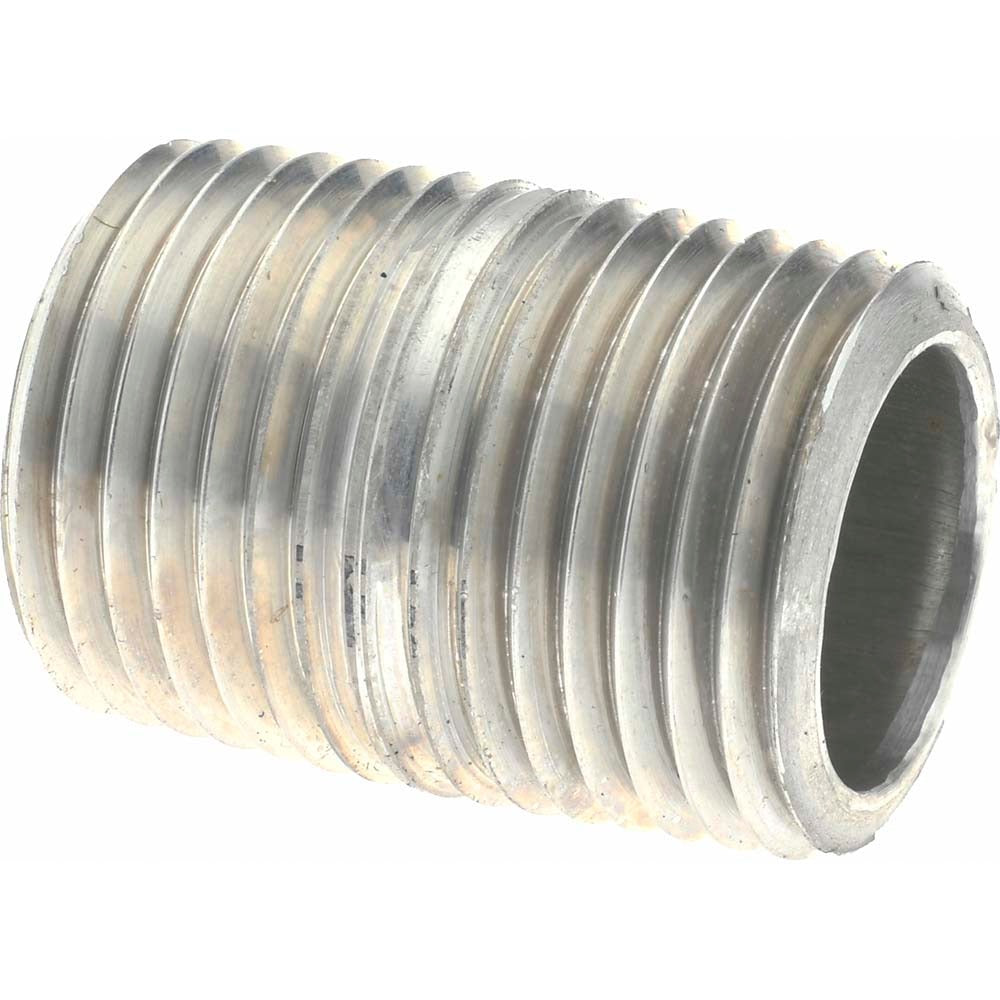

Merit Brass 8008-001 Aluminum Pipe Nipple Sch 40

Product Description

The MERIT BRASS 8008-001 is a Schedule 40 aluminum pipe nipple threaded on both ends, designed for use in piping assemblies where lightweight, corrosion-resistant fittings are required. Machined from 6061 aluminum, this nipple measures 1/2 inch nominal pipe size at 1-1/8 inches in length. The threads run the full fitting, providing secure engagement on both ends. It weighs 0.02 pounds, making it a compact component suited for close-nipple configurations in fluid and pneumatic systems. Plumbers, pipefitters, and industrial maintenance technicians install this type of nipple where minimal spacing between fittings is needed without sacrificing thread integrity.

This pipe nipple is suited for residential and light commercial piping applications where 6061 aluminum is the specified material grade. It is commonly installed in compressed air lines, irrigation assemblies, and fluid transfer systems where steel corrosion is a concern. The 1/2 inch NPT threading on both ends allows direct connection to standard pipe fittings, valves, and couplings within the same nominal pipe size. Compliance with OSHA standards makes it appropriate for use in regulated work environments.

Key Features

• 6061 aluminum construction for corrosion resistance and light weight
• Schedule 40 wall thickness for standard-duty pressure applications
• Threaded on both ends for direct fitting-to-fitting connection
• 1/2 inch nominal pipe size at 1-1/8 inches in length for tight-clearance installations
• Meets OSHA standards for regulated industrial and commercial environments

Compatibility

Designed as an OEM-style replacement or new-installation component for 1/2 inch Schedule 40 aluminum piping systems using standard NPT threaded fittings.

Installation Notes

Installation of pipe nipples should be performed by a licensed plumber or pipefitter in accordance with applicable IPC or IFGC codes. Shut off the supply line and depressurize the system before removing or installing any threaded fittings. Apply an appropriate thread sealant or PTFE tape to the male threads before assembly. Do not over-tighten aluminum fittings, as the material is softer than steel and susceptible to thread damage under excessive torque.
