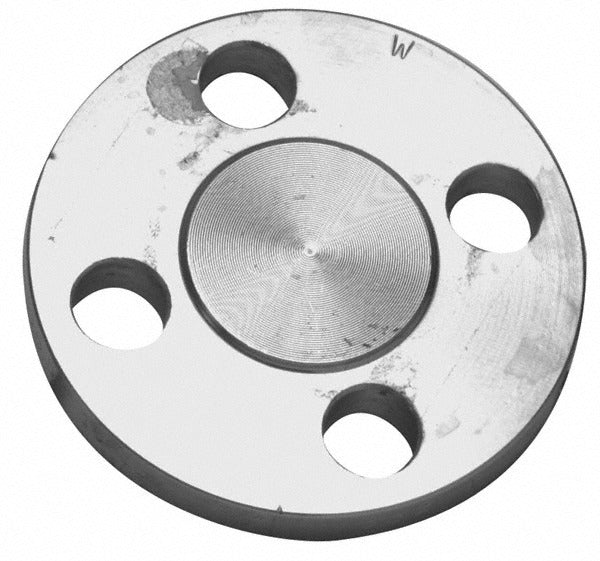

Merit Brass 435B-48 Blind Pipe Flange 3 in 150 Psi SS304

Product Description

The MERIT BRASS 435B-48 is a blind pipe flange designed to seal and terminate a 3-inch pipe end in pressurized piping systems. Manufactured from Grade 304 stainless steel, this flange provides corrosion resistance suitable for water, chemical, and industrial fluid applications. The outside diameter measures 7.5 inches, with bolt holes centered 6 inches apart across a 4-hole bolt circle pattern. Each bolt hole measures 0.75 inches in diameter. Rated at 150 psi, the 435B-48 is a standard Class 150 flat-face or raised-face blind flange used by pipefitters and plumbers to blank off open pipe ends during system testing, maintenance, or permanent closure.

This blind flange is appropriate for residential, commercial, and light industrial piping installations where a 3-inch pipe termination is required. Common applications include water supply lines, process piping, HVAC hydronic systems, and industrial fluid distribution where a pressure-rated, permanent or serviceable pipe closure is needed. The Grade 304 stainless steel construction makes it well suited for wet or corrosive environments where carbon steel flanges would be at risk of oxidation. Pipefitters working on stainless piping systems will find the 435B-48 a direct-fit component for standard ANSI Class 150 flange connections.

Key Features

• Blind connection type — fully closes off pipe end with no bore through the flange face
• Grade 304 stainless steel construction for corrosion resistance in wet and chemical environments
• 150 psi pressure rating suitable for Class 150 piping systems
• 4-bolt hole pattern on a 6-inch bolt hole center circle for standard ANSI flange alignment
• 7.5-inch outside diameter fits standard 3-inch pipe flange connections
• Weighs 7.45 pounds — solid, full-thickness flange construction

Compatibility

Designed as an OEM-style replacement or new-installation blind flange for standard ANSI Class 150 3-inch pipe flange connections in stainless steel piping systems.

Installation Notes

Installation is performed by licensed pipefitters or plumbers following applicable IPC or ASME B31 piping codes. Before installing or removing any flange, depressurize the system completely and isolate the line from any fluid source. Use appropriate gasket material rated for the media and pressure, and torque fasteners evenly in a cross pattern to ensure uniform sealing across the flange face. Do not overtighten bolts, as this can distort the flange seating surface.
