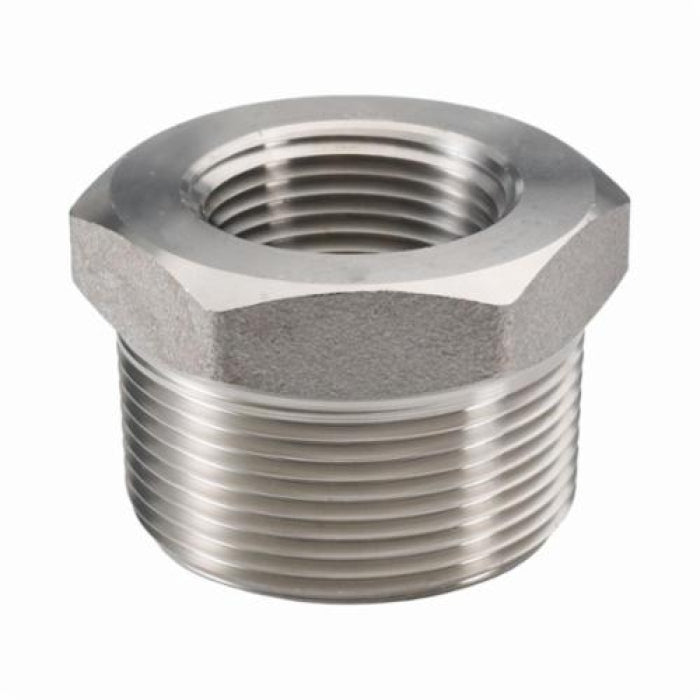

Merit Brass 3614D-2012 Hex Head Oversize Pipe Bushing 1-1/4 x 3/4 in

Product Description

The Merit Brass 3614D-2012 is a hex head oversize pipe bushing designed for reliable connections in piping systems. This product features a nominal size of one and one-quarter by three-quarters inches with MNPT and FNPT end styles. Constructed from 316/316L stainless steel, it offers durability and resistance to corrosion. The bushing fitting is manufactured using a forged method, ensuring high pressure handling capabilities.

• 316/316L stainless steel construction
• Rated for a pressure class of 3000 lb
• Hex size of 46 mm for easy installation

Product Highlights

Use this bushing in various plumbing applications for secure and leak-free connections.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: 3614D-2012

Technical Specifications

• Nominal Size: 1-1/4 x 3/4 in
• End Style: MNPT x FNPT
• Fitting/Connector Type: Bushing
• Hex Size: 46 mm
• Length: 21 mm
• Material: 316/316L Stainless Steel
• Method of Manufacture: Forged
• Pressure Class: 3000 lb
• Domestic/Import: Import
