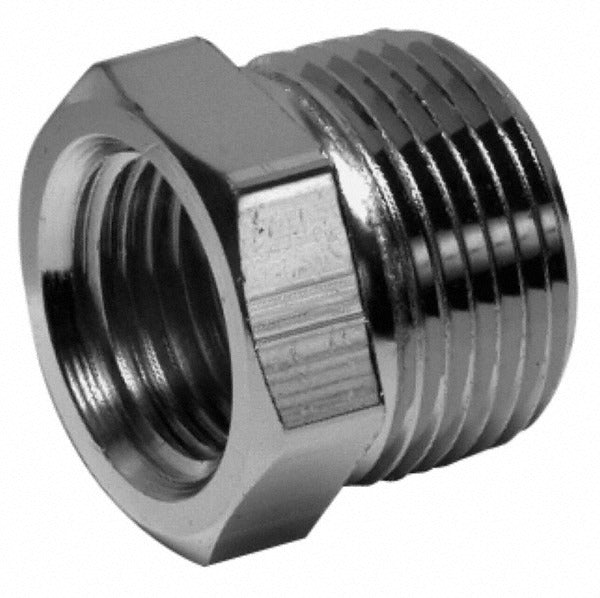

Merit Brass 3614D-2002 Pipe Bushing 1-1/4 X 1/8 in Ss

Product Description

The MERIT BRASS 3614D-2002 is a hex pipe bushing machined from 316/316L dual-certified stainless steel, designed to reduce a 1-1/4 inch female NPT port down to a 1/8 inch male NPT connection. Rated to 3,000 psi, this bushing handles demanding pressure service in fluid and gas piping systems. The external male threads engage a larger female-threaded fitting or valve, while the internal female threads accept a smaller-diameter pipe or fitting. At 13/16 inch in length and 0.31 pounds, it is a compact, direct-installation component used by licensed plumbers, pipefitters, and industrial maintenance technicians.

This bushing is suited for residential and commercial piping applications where a thread-size reduction is required at a valve, manifold, or equipment port. The 316/316L stainless steel construction makes it appropriate for corrosive environments, including chemical process lines, marine installations, saltwater systems, and food-service or sanitary piping where carbon steel fittings are not acceptable. The MNPT x FNPT end configuration allows direct thread engagement without adapters.

Key Features

• 316/316L dual-certified stainless steel construction for corrosion resistance in harsh and wet environments
• 3,000 psi pressure rating for high-pressure fluid and gas service
• 1-1/4 inch MNPT to 1/8 inch FNPT thread reduction in a single fitting
• 13/16 inch body length for compact installation in tight spaces
• Standard NPT threads for compatibility with common pipe fittings and valves

Compatibility

Designed as an OEM-style replacement or direct-install fitting for standard NPT threaded piping systems requiring a 1-1/4 inch to 1/8 inch thread reduction in 316/316L stainless steel construction.

Installation Notes

Installation is performed by a licensed plumber or pipefitter in accordance with applicable IPC or IFGC requirements. Isolate and depressurize the line before removing or installing any threaded fitting. Apply thread sealant tape or compound rated for the service fluid and pressure before engaging threads. Do not overtighten with a pipe wrench, as stainless steel threads can gall if excessive torque is applied without proper lubrication or sealant.
