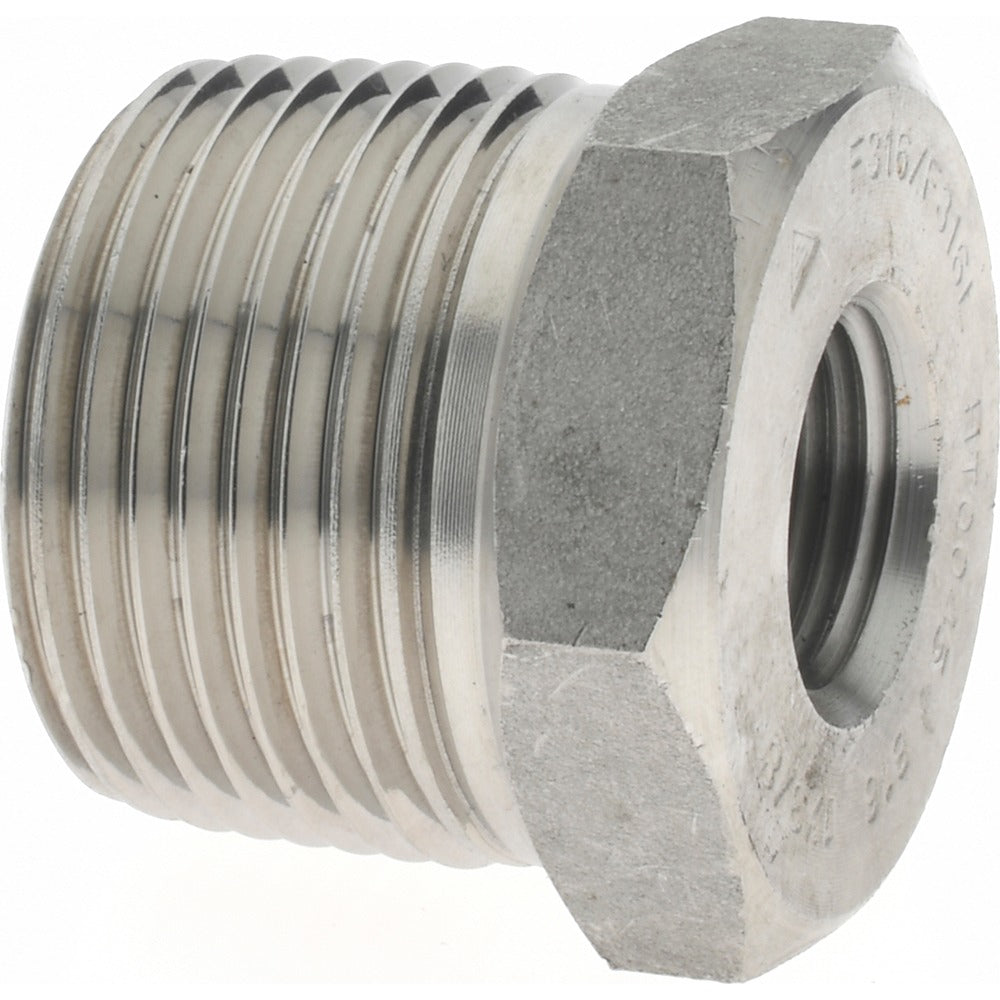

Merit Brass 3614D-1606 Pipe Bushing 1x3/8 Ss 3000 Psi

Product Description

The MERIT BRASS 3614D-1606 is a threaded pipe bushing designed for reducing pipe connections from a 1-inch male NPT inlet to a 3/8-inch female NPT outlet. Constructed from 316 and 316L stainless steel, this bushing delivers corrosion resistance in demanding environments including wet, chemical-exposure, and marine plumbing systems. It carries a 3,000 psi pressure rating, making it suitable for high-pressure fluid and gas piping applications. At 5/8 inch in length and weighing 0.31 pounds, it is a compact, durable fitting installed by licensed plumbers and pipefitters in both industrial and commercial piping systems.

This bushing is used in applications where a pipe or tubing run steps down from a 1-inch nominal line to a 3/8-inch branch or instrument connection. Typical install scenarios include process piping, hydraulic lines, chemical handling systems, and marine plumbing where corrosion resistance is a primary concern. The 316 and 316L dual-grade material designation makes it appropriate for low-carbon, weld-adjacent service as well as standard threaded installations. It is sold and packaged as a single unit.

Key Features

• 316 and 316L stainless steel construction for superior corrosion resistance in wet and chemical environments
• 3,000 psi pressure rating suitable for high-pressure fluid and gas service
• MNPT x FNPT threaded end connections for standard NPT piping systems
• Reduces 1-inch male NPT to 3/8-inch female NPT in a single compact fitting
• 5/8-inch body length for minimal inline footprint
• Dual 316 and 316L material grade covers both standard and low-carbon weld-adjacent service

Compatibility

Designed as an OEM-style replacement or new-installation bushing for standard NPT threaded piping systems requiring a 1-inch to 3/8-inch reducer in 316 or 316L stainless steel.

Installation Notes

Installation is performed by a licensed plumber or pipefitter. Shut off and depressurize the line completely before removing or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape rated for the service fluid and pressure before making up the connection. Tighten to hand-tight plus wrench turns per applicable IPC or IFGC guidelines for threaded fittings — do not over-torque stainless steel threads, as galling can occur.
