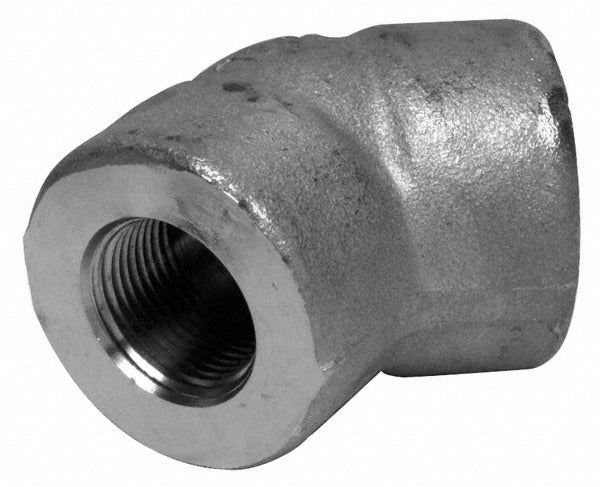

Merit Brass 3602D-06 45 Degree Pipe Elbow 3/8 in 316 Ss

Product Description

The MERIT BRASS 3602D-06 is a 45-degree threaded pipe elbow designed for high-pressure piping systems requiring corrosion-resistant fittings. Manufactured from 316 and 316L stainless steel, this fitting handles up to 3,000 psi and is suited for demanding industrial, plumbing, and process piping applications. Both ends are female NPT (FNPT), accepting standard threaded pipe connections. The 3/8-inch fitting size fits common small-bore pipe runs where directional changes are needed. Licensed plumbers, pipefitters, and mechanical contractors install this type of fitting during new construction and retrofit work on corrosive-fluid or high-pressure systems.

This 45-degree elbow is used in residential and commercial piping systems where a moderate change of direction is required without the sharper turn of a 90-degree elbow. The 316 and 316L stainless steel construction makes it appropriate for corrosive media, saltwater environments, chemical service lines, and sanitary applications. It is commonly found in process piping, steam lines, compressed gas distribution, and hydraulic systems where both pressure integrity and corrosion resistance are critical.

Key Features

• 45-degree elbow geometry provides a gradual directional change to reduce flow turbulence
• 316 and 316L stainless steel construction resists corrosion in harsh and wet environments
• Rated to 3,000 psi for high-pressure piping applications
• FNPT x FNPT threaded ends accept standard NPT pipe on both sides
• 3/8-inch fitting size fits standard small-bore pipe configurations
• Sold individually with no minimum order quantity beyond one unit

Compatibility

Designed as an OEM-style threaded pipe fitting compatible with standard 3/8-inch NPT piping systems in high-pressure industrial, commercial, and mechanical applications requiring 316 or 316L stainless steel construction.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable IPC or IFGC code requirements for the system type. Depressurize and isolate the line completely before removing or installing any threaded fitting. Apply appropriate thread sealant rated for the service pressure and fluid type to all male NPT threads before assembly. Do not over-torque threaded stainless steel fittings, as galling can damage threads and compromise the seal.
