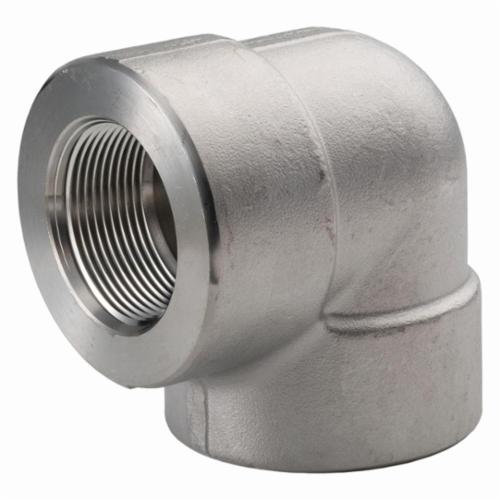

Merit Brass 3601D-16 Pipe 90 deg Elbow 1 in FNPT 3000 lb

Product Description

Merit Brass presents the 3601D-16 Pipe 90 Degree Elbow. This fitting is designed for connecting pipes at a right angle. It features a nominal one inch size and is made from 316/316L stainless steel. The elbow is suitable for high-pressure applications, rated at three thousand pounds. It has a thickness of four point nine eight millimeters and an outside diameter of fifty-six millimeters.

• Fitting Type: 90 Degree Elbow
• Material: 316/316L Stainless Steel
• Pressure Rating: 3000 lb

Product Highlights

This elbow is ideal for industrial applications where durability and corrosion resistance are critical.

Product Information

Standard Information

• Manufacturer: Merit Brass
• MPN: 3601D-16

Technical Specifications

• Dimensions: 56 mm OD
• End Style: FNPT
• Thickness: 4.98 mm
• Nominal Size: 1 in
• Pressure Class: 3000 lb
• Domestic/Import: Import
• Construction Method: Forged
• Standards/Approvals: ANSI B16.11, ASTM/ASME A182/SA182
