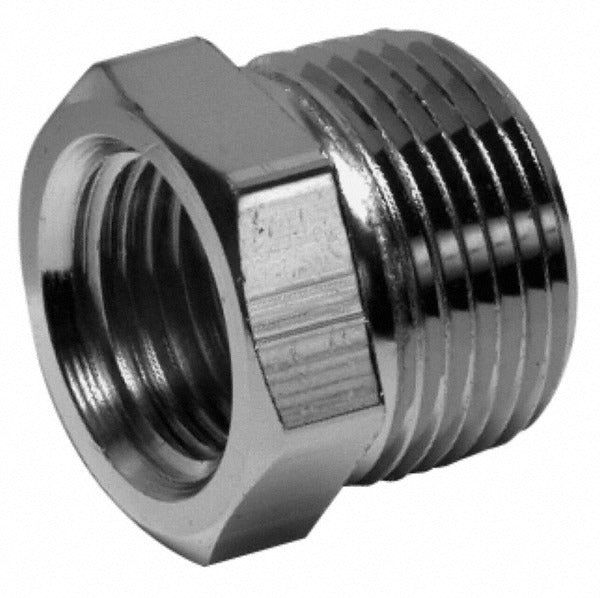

Merit Brass 3414D-3206 Pipe Bushing 2x3/8 in Ss 3000 Psi

Product Description

The MERIT BRASS 3414D-3206 is a stainless steel pipe bushing designed to reduce a 2-inch male NPT connection down to a 3/8-inch female NPT connection in threaded piping systems. Constructed from 304/304L stainless steel, it delivers a pressure rating of 3,000 psi, making it suitable for demanding fluid and gas distribution applications. The MNPT x FNPT end configuration allows direct threaded installation into existing pipe runs without additional adapters. Plumbers, pipefitters, and mechanical contractors install this fitting where a size reduction is needed within a threaded system.

This bushing is used in commercial and industrial plumbing, process piping, and fluid handling systems where 304 or 304L stainless steel construction is required for corrosion resistance. Typical installations include water distribution headers, hydraulic lines, and chemical transfer piping where a 2-inch to 3/8-inch reduction is required. It is sold individually with a minimum order quantity of one.

Key Features

• 304/304L stainless steel construction for corrosion resistance in wet and chemical environments
• 3,000 psi pressure rating suitable for high-pressure piping systems
• MNPT x FNPT end connections for standard threaded pipe installation
• 2-inch to 3/8-inch reduction in a single fitting, eliminating the need for additional adapters
• Dual-certified 304/304L material grade meets both standard and low-carbon stainless requirements

Compatibility

Designed as an OEM-style threaded pipe fitting replacement for 2-inch male NPT to 3/8-inch female NPT connections in 3,000 psi-rated stainless steel piping systems.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable IPC and ASME B31 piping codes. Depressurize and isolate the system completely before removing or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape rated for the service fluid and pressure. Do not over-torque stainless steel fittings, as galling can occur on NPT threads.
