Merit Brass 235-40 Companion Flange 2-1/2 in Nominal 150 lb

Product Description

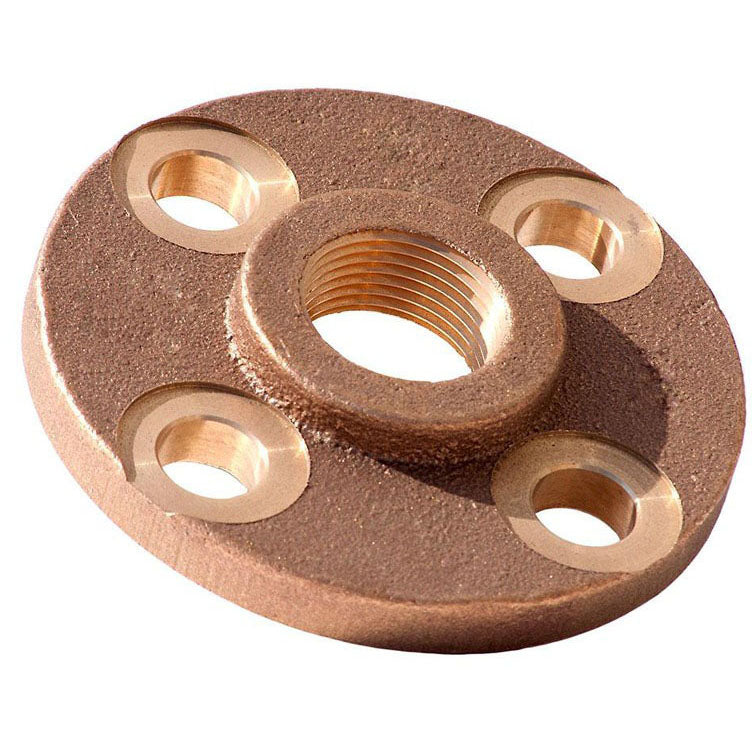

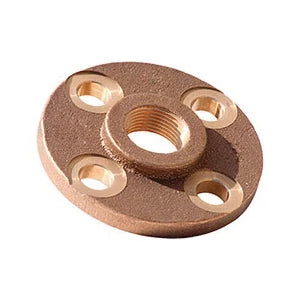

The Merit Brass 235-40 companion flange features a 2-1/2 in nominal size and is constructed from brass. Designed for thread connection and suitable for 150 lb pressure class. It is domestic and ideal for commercial, plumbing, OEM, water, oil, gas, and steam applications.

• Good corrosion resistance from water and heat
• Resists attack from salt water and acids, minerals and peaty soils contained in water
• Relative softness of metal provides for a tight seal and ease of installation

Product Highlights

This brass companion flange is suitable for various applications requiring a reliable and corrosion-resistant connection.

Product Information

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: 235-40
• Country of Origin: Domestic

Technical Specifications

• Brand: Merit Brass
• Bolt Circle Diameter: 5-1/2 in
• Bolt Hole Size: 3/4 in
• Connection Type: Thread
• Domestic/Import: Domestic
• Material: Brass
• Nominal Size: 2-1/2 in
• Number of Bolt Holes: 4
• Outside Diameter: 7 in
• Pressure Class: 150 lb
• End Connection: Female Thread
• Fitting Size: 2-1/2"
• Fitting Type: Flange
• Manufacturer Name: Merit Brass
• Applicable Standard: ANSI/ASME B16.15, WW-P-460
• Nominal Pipe Size: 2-1/2"
• Flange Outside Diameter: 7"
• Thickness: 9/16"
• Material Specification: ASTM B584
• Pressure Rating: Class 150
• Application: Commercial, Plumbing, OEM, Water, Oil, Gas, Steam
