Merit Brass 2120-200 Red Brass Nipple 1-1/4x2 in Schedule 40

Product Description

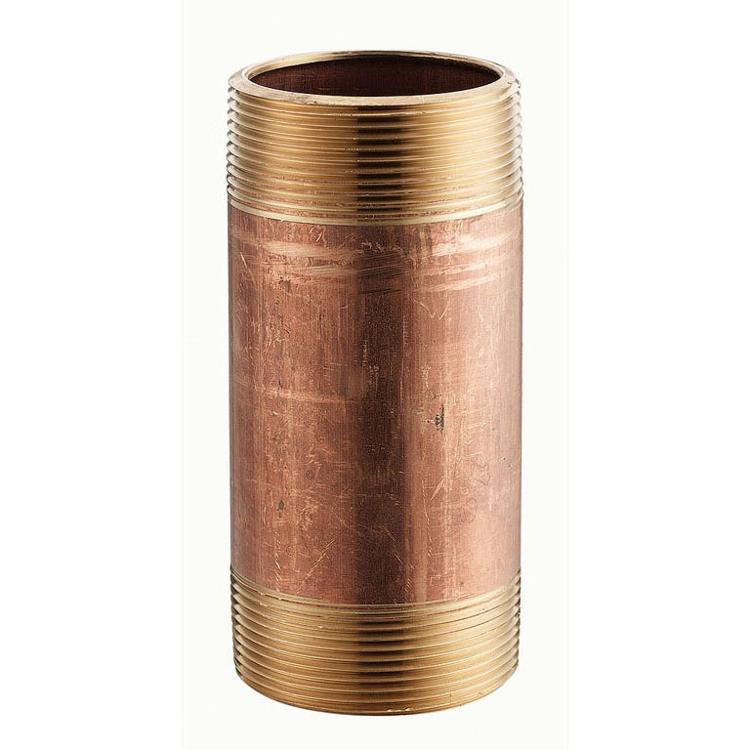

The MERIT BRASS 2120-200 is a Schedule 40 seamless red brass nipple used to extend or connect threaded piping runs in commercial and residential plumbing systems. Measuring 1-1/4 inches in diameter and 2 inches in overall length, it features male threaded ends on both sides for direct engagement with standard female-threaded fittings and valves. Red brass construction conforms to ASTM B687-88/B456 material specification, delivering solid corrosion resistance against water, salt water, acids, minerals, and peaty soils. The relative softness of the metal allows it to form a tight seal under proper thread engagement and simplifies installation across a range of pipe applications.

This nipple is suited for commercial plumbing, OEM equipment assembly, and piping systems carrying water, oil, gas, or steam. The seamless process eliminates weld seams, which reduces weak points in pressurized service. Licensed plumbers and pipefitters install this type of fitting in supply lines, distribution manifolds, equipment connections, and transition assemblies where a short close-length extension is needed between two threaded ports. It is packaged 10 per box, making it practical for job-lot purchases on larger installations.

Key Features

• Seamless red brass construction per ASTM B687-88/B456 for consistent wall integrity
• Schedule 40 wall thickness rated for standard-duty pressurized service
• Male threaded x male threaded ends for direct connection to female-threaded fittings
• Corrosion resistance against salt water, acids, minerals, and peaty soils
• Metal softness promotes tight thread sealing and ease of installation
• Packaged 10 per box for multi-unit job purchases

Compatibility

Designed as an OEM-style replacement or new-installation nipple for Schedule 40 threaded piping systems in commercial plumbing, water, oil, gas, and steam service applications.

Installation Notes

Installation is performed by a licensed plumber or pipefitter following applicable IPC or local plumbing code requirements. Shut off system pressure and drain the line before removing or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape to the male threads before hand-tightening, then wrench-tighten to achieve a leak-free seal without over-torquing the brass threads. Inspect the connection for leaks after restoring system pressure.

Technical Specifications

• Fitting Type: Nipple
• Material: Red Brass
• Material Specification: ASTM B687-88/B456
• Process: Seamless
• Size A: 1-1/4 inches
• Size B: 1-1/4 inches
• Overall Length: 2 inches
• Schedule: 40 S
• End Connection: Male Threaded x Male Threaded
• Application: Commercial, Plumbing, OEM, Water, Oil, Gas, Steam
• Packaging Quantity: 10 Per Box

Standard Information

• Brand: MERIT BRASS
• Manufacturer Part Number: 2120-200
