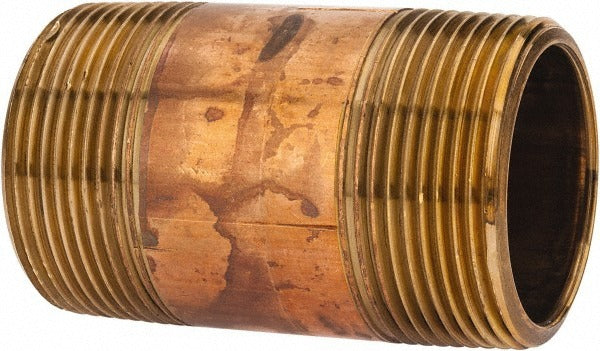

Merit Brass 2024-300BSPT Brass Pipe Nipple 1-1/2 Bspt

Product Description

The MERIT BRASS 2024-300BSPT is a red brass pipe nipple threaded on both ends, designed for fluid and gas transfer applications requiring a reliable threaded connection. At 3 inches overall length with 1-1/2 inch BSPT (British Standard Pipe Tapered) threads, this nipple provides a tight, leak-resistant joint when installed into compatible BSPT-threaded fittings, valves, or equipment ports. Red brass construction offers good corrosion resistance and durability in water, steam, and mild chemical service. Licensed plumbers and pipefitters install this type of nipple in both new construction and retrofit piping work.

This nipple is suited for residential and light commercial plumbing, steam, and fluid distribution systems where BSPT threading is specified. BSPT threads are commonly found on imported equipment, industrial machinery, hydraulic systems, and European-standard components. It is not interchangeable with NPT (National Pipe Tapered) threads, so verify the thread standard on mating fittings before installation. The 3 inch OAL makes it appropriate for close-quarter connections where a short run of pipe is required between two threaded ports.

Key Features

• Red brass construction for corrosion resistance in water and steam service
• Threaded on both ends for standard nipple installation between two female-threaded fittings
• 1-1/2 inch BSPT thread standard for compatibility with British Standard Pipe Tapered fittings
• 3 inch overall length suits short-run and close-quarter piping applications
• Single-piece solid construction with no solder joints or mechanical seams

Compatibility

Designed for use with 1-1/2 inch BSPT female-threaded fittings, valves, and equipment ports. BSPT threads are not compatible with NPT threads; confirm thread standard on all mating components before installation.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes. Shut off supply pressure and depressurize the line before removing or installing any threaded pipe component. Apply thread sealant tape or compound rated for the service media to the male threads before assembly. Do not use pipe wrenches on the pipe body in a way that could distort or crack the brass; use proper jaw pads or strap wrenches when torquing into place.
