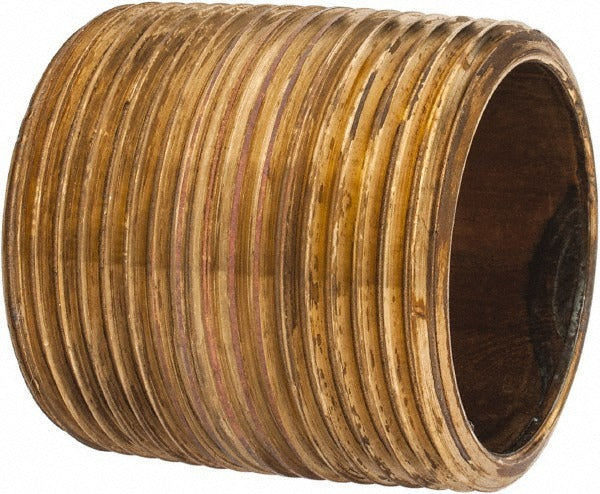

Merit Brass 2020-001BSPT Brass Pipe Nipple 1-1/4 Bspt

Product Description

The MERIT BRASS 2020-001BSPT is a red brass pipe nipple threaded on both ends to a 1-1/4 inch BSPT (British Standard Pipe Taper) standard. With an overall length of 1-5/8 inches and an outside diameter of 1-1/4 inches, this close nipple is built for compact, tight-clearance connections in plumbing and fluid-handling systems. Red brass construction provides strong corrosion resistance in wet service environments, making it suitable for water, light oil, and general-purpose piping applications. Plumbers and pipefitters install this fitting where a short threaded union between two female-threaded ports is required. It meets OSHA standards and weighs 0.265 pounds.

This nipple is used in residential and commercial plumbing systems, HVAC hydronic loops, and industrial piping runs where BSPT-threaded connections are specified. The 1-1/4 inch thread size is common in mid-range supply and return lines, manifold assemblies, and equipment tie-ins. Its compact 1-5/8 inch length suits installations with minimal clearance between fittings or valves. Licensed plumbers and pipefitters working on BSPT-standard systems will find this nipple a direct fit where inch-based BSP threading is required.

Key Features

• Threaded on both ends for direct port-to-port connections without additional adapters
• 1-1/4 inch BSPT thread standard for compatibility with British Standard Pipe Taper fittings
• Red brass material provides corrosion resistance in wet and humid service conditions
• Compact 1-5/8 inch overall length suits tight-clearance installations
• Meets OSHA standards

Compatibility

Designed as an OEM-style replacement or new-installation fitting for plumbing and piping systems using 1-1/4 inch BSPT-threaded connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter familiar with BSPT thread standards. Shut off and depressurize the line before removing any existing fittings. Apply an appropriate thread sealant or PTFE tape rated for the service fluid before making up the connection. Do not over-tighten; follow applicable IPC or local plumbing code torque guidance for brass fittings.
