Merit Brass 01426-48 Stainless Steel Stub End Type A Schedule 10 3 Inch

Product Description

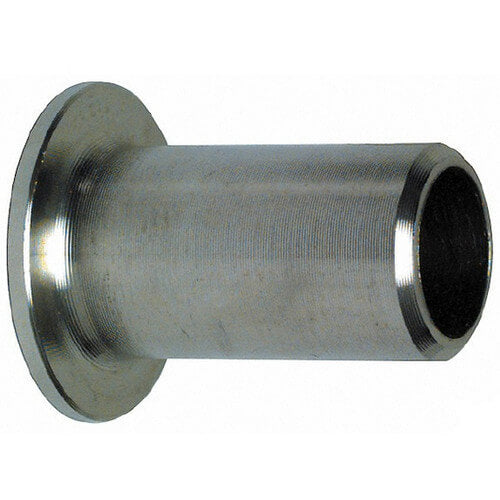

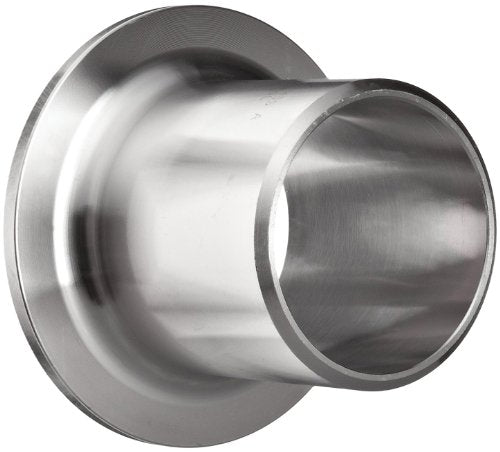

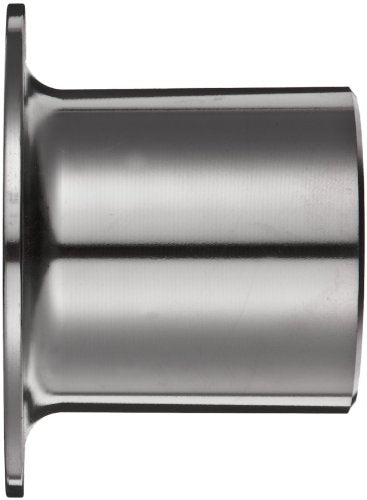

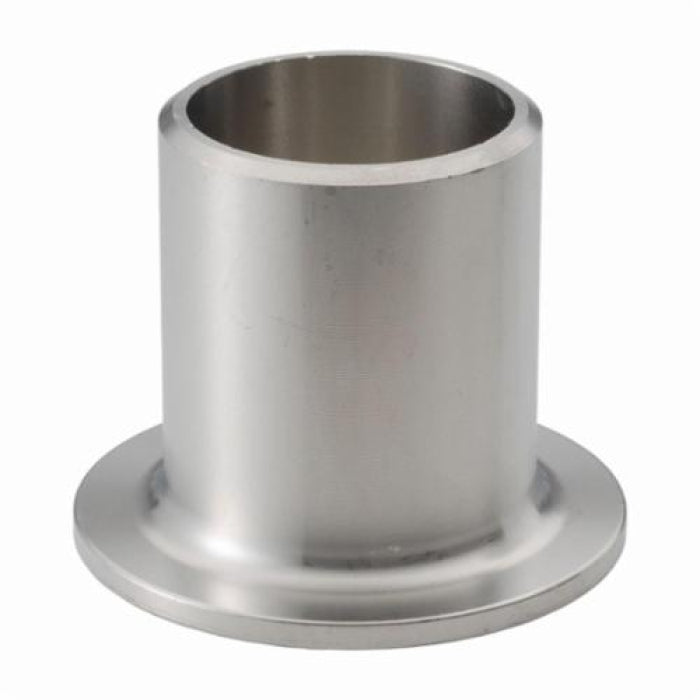

The Merit Brass Type A MSS stub end, MPN 01426-48, is a schedule 10 stainless steel 304/304L butt-weld pipe fitting designed to be used with lap joint flanges to connect pipes. This Type A stub end features a butt-weld, beveled opening for welding pipes, a square inside corner, and an outside corner radiused to accommodate the lap joint flange. Made of stainless steel 304/304L, the lower carbon content minimizes harmful carbide precipitation due to welding, ensuring corrosion resistance. The fitting meets both steel 304 strength standards and 304L extra-low carbon standards for quality assurance.

• Butt-weld, beveled openings for welding pipes together
• Low carbon content to ensure greater resistance to corrosion
• Meets MSS SP-43 certification standards

Product Highlights

The Merit Brass Type A Stub End is ideal for use with lap joint flanges. It ensures corrosion resistance and maintains structural integrity during welding.

Product Information

Standard Information

• Brand: Merit Brass
• MPN: 01426-48

Technical Specifications

• Type: Type A
• Material: Stainless Steel 304/304L
• Connection Size: 3 inches
• Connection Type: Butt-Weld
• Length: 2-1/2 inches
• Schedule: SCH 10
• Material Specifications: ASTM A403/ASME SA403
• Standards/Certifications: MSS SP-43 certified
