Merit Brass 01406-9632 Stainless Steel Pipe Tee 6x2 in

Product Description

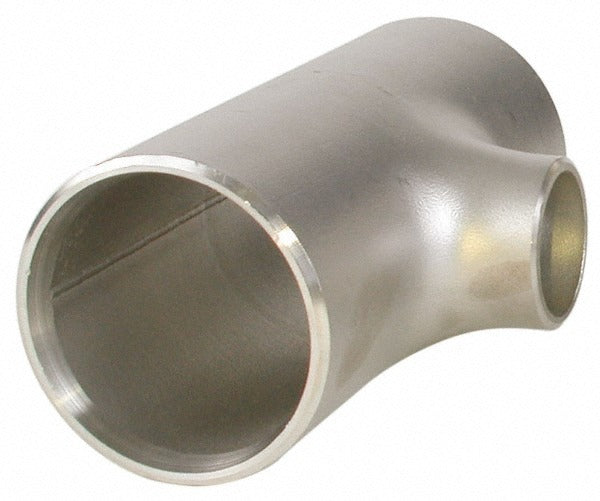

The MERIT BRASS 01406-9632 is a reducing pipe tee fabricated from 304L stainless steel and designed for butt weld installation in Schedule 10 piping systems. The reducing configuration connects a 6-inch run pipe to a 2-inch branch outlet, making it suitable for flow-distribution and branch-takeoff applications where system pressure and corrosion resistance are priorities. The 304L low-carbon grade minimizes sensitization during welding, which is a key consideration for field-welded assemblies in corrosive or high-purity service environments. Licensed plumbers, pipefitters, and industrial piping contractors are the primary installers of this fitting.

This reducing tee is used in commercial and industrial piping systems where a main line must be tapped to a smaller branch line without threaded connections. Typical applications include process piping, chemical distribution, food-service utility lines, and general industrial fluid handling where stainless steel is specified for corrosion resistance. The butt weld end connections on all three outlets make it well suited for sanitary or pressure-rated systems that require continuous, full-penetration welds rather than mechanical or threaded joints.

Key Features

• 304L low-carbon stainless steel resists corrosion and minimizes weld sensitization
• Butt weld end connections on all three outlets for full-penetration, leak-resistant joints
• Reducing configuration: 6-inch run x 2-inch branch for flow-distribution layouts
• Schedule 10 wall thickness for lightweight, lower-pressure industrial and commercial service
• Suitable for corrosive, high-purity, and food-service fluid-handling systems

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 10 stainless steel butt weld piping systems requiring a 6 x 2 inch reducing tee configuration.

Installation Notes

Installation requires a qualified pipefitter or licensed plumber experienced with butt weld stainless steel fittings. Depressurize and drain the system completely before cutting into any existing line. Welding should follow applicable codes such as ASME B31.3 for process piping or ASME B31.1 for power piping, and weld procedures should account for the low-carbon 304L grade to preserve corrosion resistance at the heat-affected zone. Do not use open flame or welding equipment near active fluid or gas lines.
