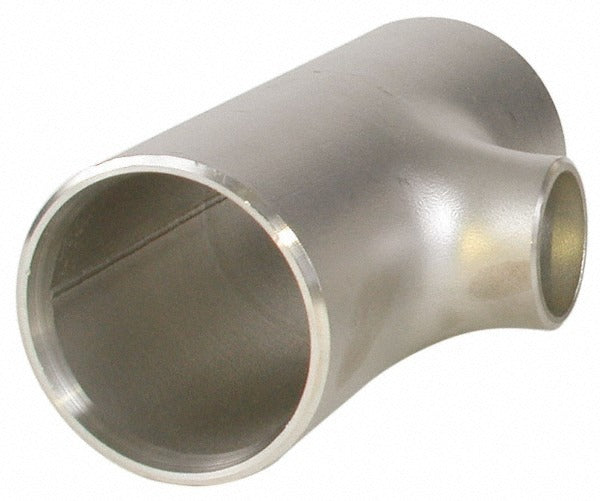

Merit Brass 01406-2412 Pipe Tee 1-1/2x3/4 in 304L Ss Sched 10

Product Description

The MERIT BRASS 01406-2412 is a reducing pipe tee fabricated from 304L stainless steel for use in welded piping systems. It features a 1-1/2 inch run with a 3/4 inch branch outlet, joining three pipe segments through butt weld end connections. Built to Schedule 10 wall thickness, this fitting suits low- to medium-pressure service in corrosion-sensitive environments. Licensed pipefitters and welders install this type of fitting in process, mechanical, and plumbing systems where stainless steel is specified for its resistance to oxidation and chemical attack. At 1.3 pounds, it is a single-piece, sold-individually fitting appropriate for both new construction and retrofit work.

This reducing tee is used in commercial and industrial piping runs where the flow must be split or redirected to a smaller branch line. Typical applications include HVAC hydronic systems, process piping, food-grade and sanitary installations, and light industrial fluid handling. The 304L low-carbon grade minimizes carbide precipitation during welding, making it the standard choice for welded stainless assemblies where sensitization is a concern. A licensed pipefitter or certified welder typically handles installation in code-governed mechanical rooms and process facilities.

Key Features

• 304L low-carbon stainless steel construction resists sensitization during welding
• Butt weld x butt weld end connections on all three ports for full-penetration weld joints
• Schedule 10 wall thickness suits moderate-pressure piping runs
• Reducing configuration: 1-1/2 inch run, 3/4 inch branch outlet
• Sold as a single piece — no minimum bundle required
• UNSPSC Code 40175300 for procurement system classification

Compatibility

Designed as an OEM-style butt weld reducing tee for Schedule 10 stainless steel piping systems using 1-1/2 inch run pipe and 3/4 inch branch pipe.

Installation Notes

Installation requires a certified welder familiar with stainless steel TIG or MIG procedures; use filler metal compatible with 304L base material to preserve corrosion resistance. Depressurize and drain the piping system completely before cutting in the fitting. Follow applicable codes such as ASME B31.3 for process piping or ASME B31.9 for building services piping. Avoid contaminating the weld zone with carbon steel tools or wire brushes to prevent rust migration into the stainless surface.
