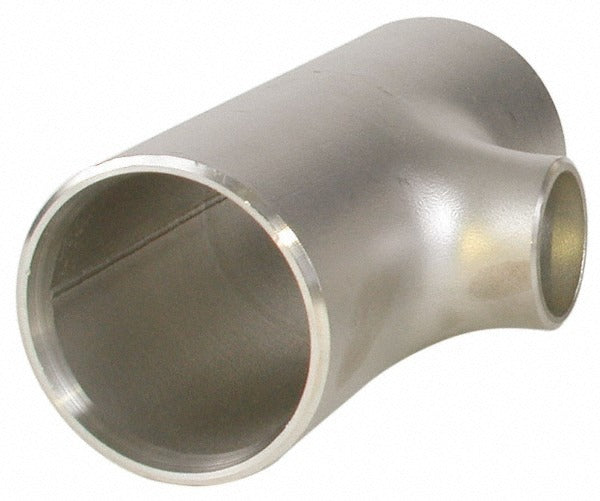

Merit Brass 01406-1612 Pipe Tee 1x3/4 in 304L Ss Butt Weld Sch 10

Product Description

The MERIT BRASS 01406-1612 is a Schedule 10 reducing pipe tee fabricated from 304L stainless steel. It connects a 1-inch run pipe to a 3/4-inch branch using butt weld end connections on all three outlets. The 304L designation indicates a low-carbon austenitic stainless alloy, which reduces sensitization risk during welding and supports corrosion resistance in demanding service environments. Weighing 0.54 pounds, this tee is suited for use in piping systems where a permanent, full-penetration welded joint is required. Licensed plumbers, pipefitters, and mechanical contractors are the typical installers for this type of fitting.

This reducing tee is appropriate for residential and commercial plumbing, process piping, and mechanical systems where Schedule 10 stainless steel pipe is specified. The butt weld configuration makes it a fit for systems that require smooth interior bore continuity and leak-tight joints under pressure or temperature cycling. Its 304L material grade is commonly specified in food service, chemical handling, and industrial water treatment installations where corrosion resistance and weldability are priorities.

Key Features

• 304L low-carbon stainless steel construction reduces weld sensitization and supports corrosion resistance
• Butt weld end connections on all three outlets provide full-penetration, permanent joints
• Schedule 10 wall thickness suits lightweight stainless piping systems
• Reducing tee configuration transitions 1-inch run to 3/4-inch branch in a single fitting
• Weighs 0.54 pounds for straightforward handling during installation

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 10 stainless steel piping systems using butt weld connections.

Installation Notes

Installation requires a qualified pipefitter or licensed plumber with appropriate welding certification for stainless steel butt weld joints. Shut down system pressure and drain the line before cutting into existing piping. Purge welding with an inert backing gas is standard practice for 304L stainless butt welds to prevent oxidation on the interior weld bead. Follow applicable codes including IPC and ASME B31 piping standards for the specific service application.
