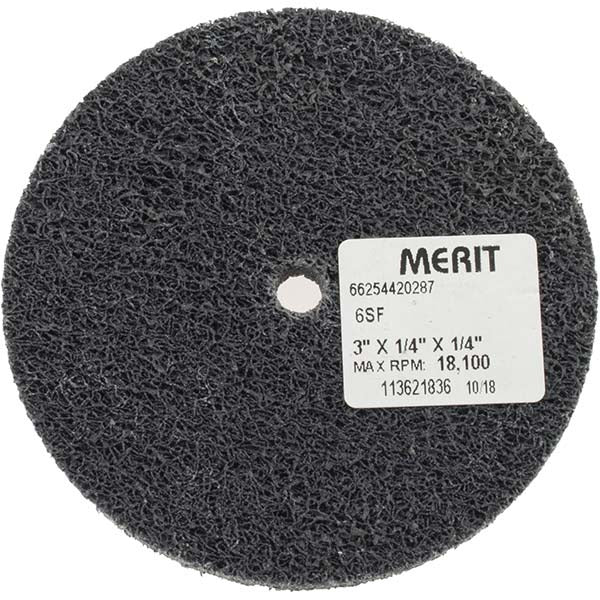

Merit Abrasives 66254420287 Deburring Wheel 3 Inch

Product Description

The MERIT ABRASIVES 66254420287 is a unitized deburring wheel designed for controlled material removal on metal workpieces. Built with a silicon carbide abrasive construction and a density rating of 6, this wheel delivers consistent cutting action across edges, weld seams, and surface burrs. It measures 3 inches in diameter with a 0.25-inch face width and accepts a 0.25-inch center arbor. Rated to 18,000 RPM, it is compatible with standard die grinders used in fabrication, maintenance, and finishing operations. Machinists, pipefitters, and metalworkers reach for this wheel when blending or cleaning up cut edges before assembly or inspection.

This wheel is suited for light deburring and surface conditioning tasks in both shop and field environments. Its unitized construction holds the abrasive grain in a three-dimensional nylon web matrix, which allows the wheel to conform slightly to workpiece contours while maintaining a consistent cut. The silicon carbide grain makes it effective on non-ferrous metals, stainless steel, titanium, and hard alloys where aluminum oxide would glaze or load. Typical applications include edge radiusing after plasma or laser cutting, cleaning weld flash, and prepping surfaces ahead of inspection or coating.

Key Features

• Silicon carbide abrasive grain — effective on hard alloys, stainless, and non-ferrous metals
• Density 6 unitized construction for consistent, controlled stock removal
• 18,000 RPM maximum speed rating for use with die grinders
• 3-inch diameter with 0.25-inch face width — compact profile for tight access areas
• 0.25-inch center hole fits standard die grinder mandrels
• Lightweight at 0.01 pounds — minimal tool loading during extended use

Compatibility

Designed for use with die grinders accepting a 0.25-inch arbor and rated for wheels up to 18,000 RPM.

Installation Notes

Installation and operation should be performed by qualified machinists or metalworkers familiar with abrasive wheel safety. Before mounting, confirm the die grinder is rated at or above the wheel speed and that the arbor size matches the 0.25-inch center hole. Always power down and disconnect the tool before changing wheels. Inspect the wheel for cracks or damage before each use and never exceed the maximum RPM stamped or listed for the wheel.
