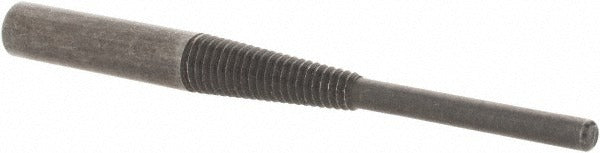

Merit Abrasives 08834181209 Cartridge Roll Mandrel

Product Description

The MERIT ABRASIVES 08834181209 is a cartridge roll mandrel designed to hold abrasive cartridge rolls for use in rotary tools, die grinders, and similar power equipment. The mandrel features a 0.125-inch pilot diameter and a 1-inch pilot length, paired with a 0.25-inch shank diameter and a 1.25-inch shank length, yielding an overall length of 2.75 inches. This type of mandrel is the interface between the tool spindle and the abrasive media, allowing technicians to swap out worn cartridge rolls quickly without replacing the entire assembly. It is suited for deburring, blending, and surface finishing work in metal fabrication, maintenance, and repair environments.

Cartridge roll mandrels like the 08834181209 are used wherever rotary abrasive work is performed on internal bores, weld joints, and contoured surfaces. Common applications include metal finishing in HVAC fabrication shops, pipe fitting and weld cleanup for plumbing and mechanical contractors, and general maintenance work in industrial facilities. The compact pilot and shank dimensions make it compatible with standard die grinder collets and bench-mounted rotary tools found in most trade shops.

Key Features

• 0.125-inch pilot diameter accepts standard cartridge roll abrasives
• 1-inch pilot length provides secure cartridge roll seating
• 0.25-inch shank diameter fits standard die grinder collets
• 2.75-inch overall length suits confined workspaces and internal bore access
• Single-piece mandrel design allows fast abrasive roll changeovers

Compatibility

Designed as a replacement-style cartridge roll mandrel for use with standard abrasive cartridge rolls sized to a 0.125-inch pilot. Verify cartridge roll inner diameter and tool collet size before installation.

Installation Notes

Installation is performed by threading or pressing the abrasive cartridge roll onto the pilot, then securing the shank in the collet of a die grinder or rotary tool. Always power down and disconnect the tool before loading or removing the mandrel. Ensure the collet is tightened to the tool manufacturer's specification before operation. Inspect the mandrel pilot for wear or deformation before each use, as a damaged pilot can cause abrasive roll slippage during operation.
