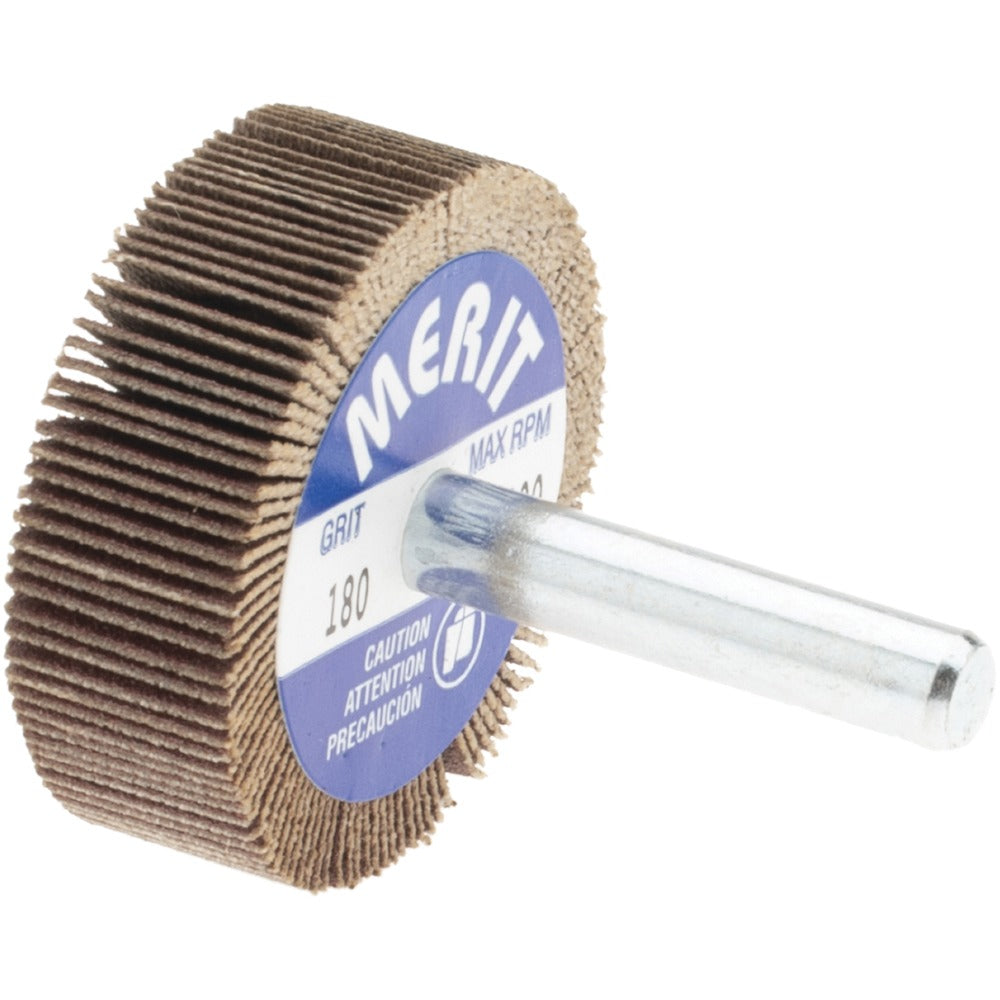

Merit Abrasives 08834137133 Mounted Flap Wheel 180 Grit

Product Description

The MERIT ABRASIVES 08834137133 is a mounted flap wheel designed for precision surface finishing and deburring on metal and other hard materials. The wheel measures 1-1/2 inches in diameter with a 1/2 inch face width and mounts via a 1/4 inch shank for use in die grinders and rotary tools. The abrasive material is ceramic alumina on a cloth backing, rated at 180 grit for a very fine finish grade. At a maximum operating speed of 25,000 RPM, it delivers consistent stock removal and blending in confined areas and tight geometries. Machinists, fabricators, and maintenance technicians use this wheel for weld blending, port work, and fine surface preparation where larger wheels cannot reach.

This mounted flap wheel is suited for use in both production and maintenance environments. It performs well on steel, stainless steel, and other hard metals where a controlled, fine-grit finish is required. The shank mount makes it compatible with standard die grinders and flexible shaft machines. Typical applications include weld seam blending, edge deburring, bore finishing, and surface conditioning in areas with limited clearance. The very fine 180 grit rating makes it appropriate for finishing passes rather than aggressive material removal.

Key Features

• 180 grit ceramic alumina abrasive for a very fine cutting action
• 1-1/2 inch outer diameter with 1/2 inch face width for compact reach
• 1/4 inch shank mount fits standard die grinders and rotary tools
• Rated to 25,000 RPM maximum operating speed
• Cloth backing provides flexibility and conformability on contoured surfaces
• No interleaf construction for direct abrasive contact

Compatibility

Designed as a direct-mount replacement or standard addition for die grinders and rotary tools accepting a 1/4 inch shank. Suitable for use wherever a mounted flap wheel with ceramic alumina abrasive and a very fine grit rating is specified.

Installation Notes

Installation is performed by a machinist, fabricator, or maintenance technician using a die grinder or compatible rotary tool with a 1/4 inch collet. Verify the tool spindle speed does not exceed the 25,000 RPM maximum before operation. Inspect the wheel for damage before mounting and ensure the shank is fully seated in the collet. Always wear appropriate eye protection and follow applicable shop safety procedures when operating mounted abrasive wheels.
