Merit Abrasives 08834137001 Flap Wheel Adapter

Product Description

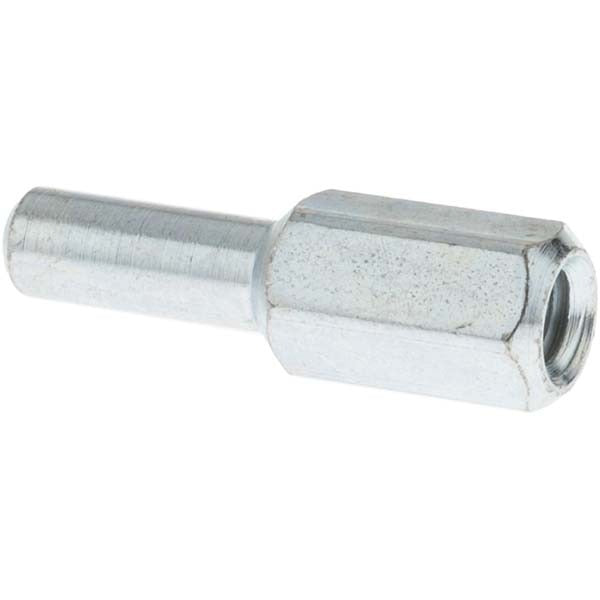

The MERIT ABRASIVES 08834137001 is a flap wheel adapter designed to mount flap wheel abrasives onto rotary power tools. It features a 1/4 inch shank diameter and a 5/8 inch shank length, with a 1/4-20 threaded end that accepts compatible flap wheels. Rated to a maximum of 20,000 RPM, this adapter is built for use in grinding, blending, and finishing operations on metal, wood, and composite surfaces. It is sized for use with standard die grinders and handheld rotary tools used across fabrication, metalworking, and finishing trades.

This flap wheel adapter is suited for production and maintenance environments where flap wheels need to be driven by a 1/4 inch collet tool. Typical applications include weld blending, surface preparation, and edge deburring on metal components. The 1/4-20 thread makes it compatible with flap wheels that use the standard threaded arbor mounting system. It is commonly used by metal fabricators, maintenance technicians, and industrial finishing crews working with handheld die grinders.

Key Features

• 1/4 inch shank diameter fits standard die grinder collets
• 5/8 inch shank length provides secure tool chuck engagement
• 1/4-20 threaded end accepts standard flap wheel arbor mounting
• Rated to 20,000 RPM for high-speed rotary tool use
• Designed for weld blending, deburring, and surface finishing applications

Compatibility

Designed as an OEM-style adapter for flap wheels using a 1/4-20 threaded arbor mount, for use with rotary tools and die grinders equipped with a 1/4 inch collet.

Installation Notes

Installation should be performed by personnel familiar with rotary abrasive tooling. Before mounting, confirm the tool is unplugged or the air supply is disconnected. Thread the flap wheel onto the 1/4-20 end securely before inserting the shank into the collet, and ensure the collet nut is tightened to the tool manufacturer's specification. Do not exceed the rated 20,000 RPM maximum speed stamped on the adapter or listed in the tool documentation.
