Merit Abrasives 08834123077 Flap Wheel 180 Grit 8x1 in

Product Description

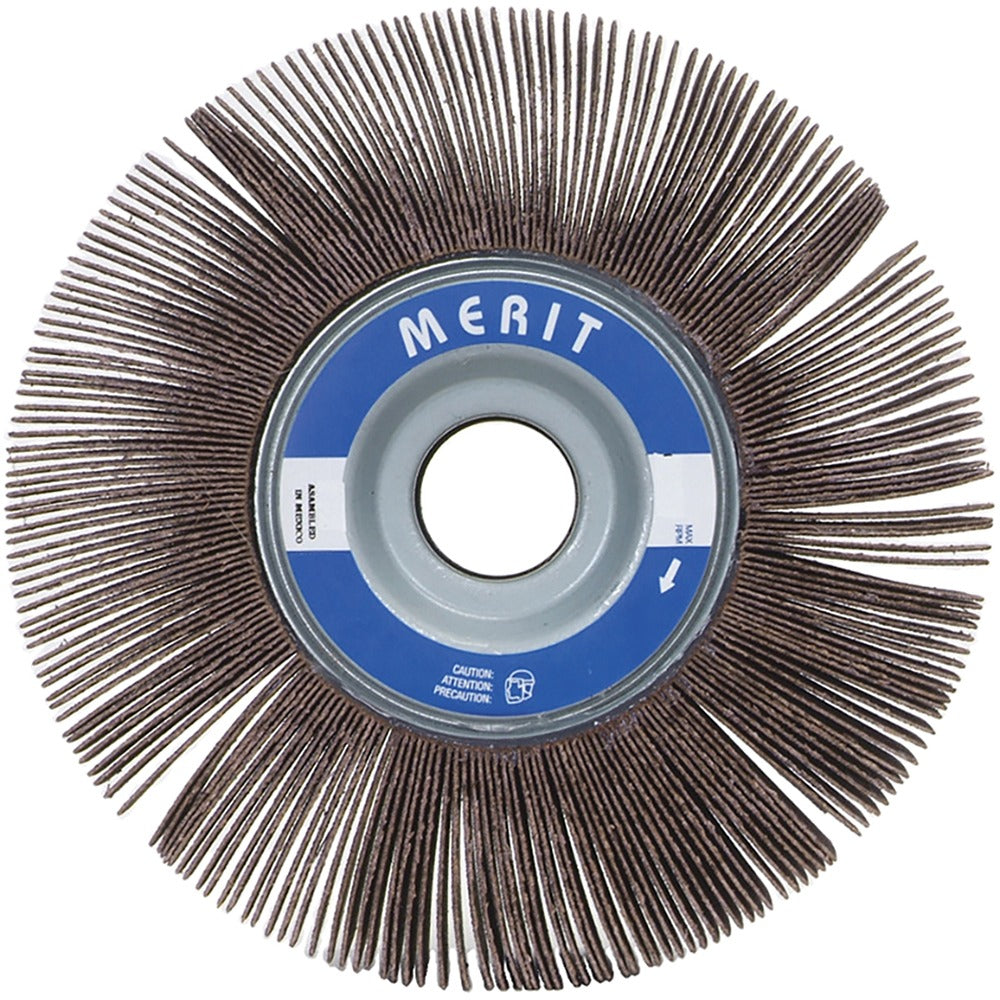

The MERIT ABRASIVES 08834123077 is an unmounted aluminum oxide flap wheel designed for surface finishing, blending, and deburring on metal, wood, and composite materials. The wheel measures 8 inches in outside diameter by 1 inch in width, with a 1-inch center hole for standard arbor mounting. Running at up to 4,500 RPM, it carries a 180-grit very fine grade rating and uses a cloth backing for durability under load. It is sold individually and suits a range of bench grinder and pedestal grinding applications where controlled, consistent material removal is required.

This flap wheel fits typical bench-mounted or pedestal grinding setups used in fabrication shops, maintenance facilities, and light industrial environments. The 180-grit very fine grade is suited for finishing passes, light blending, and surface prep rather than aggressive stock removal. Technicians and fabricators reach for this wheel when a smooth, uniform finish is the final goal. The aluminum oxide abrasive provides consistent cut and long service life across ferrous and non-ferrous metals.

Key Features

• 180-grit very fine grade aluminum oxide abrasive for controlled finishing and blending
• 8-inch outside diameter with 1-inch width and 1-inch center hole for standard arbor fit
• Cloth backing material supports flexibility and durability under operating load
• Rated to 4,500 RPM maximum for safe operation on compatible equipment
• Coated abrasive construction without interleaf for direct flap-to-surface contact
• Sold as a single unit with no minimum order beyond one piece

Compatibility

Designed for use on bench grinders and pedestal grinding machines fitted with a 1-inch arbor and capable of accommodating an 8-inch diameter wheel. Always verify the machine speed rating does not exceed the 4,500 RPM maximum rated for this wheel before mounting.

Installation Notes

Mounting and operation should be performed by qualified personnel familiar with abrasive wheel safety per applicable ANSI B11 and OSHA 1910.215 standards. Power down and lock out the machine completely before mounting or removing the wheel. Inspect the wheel for cracks or damage before each use and never exceed the 4,500 RPM rated speed. Always use appropriate eye protection and guarding during operation.
