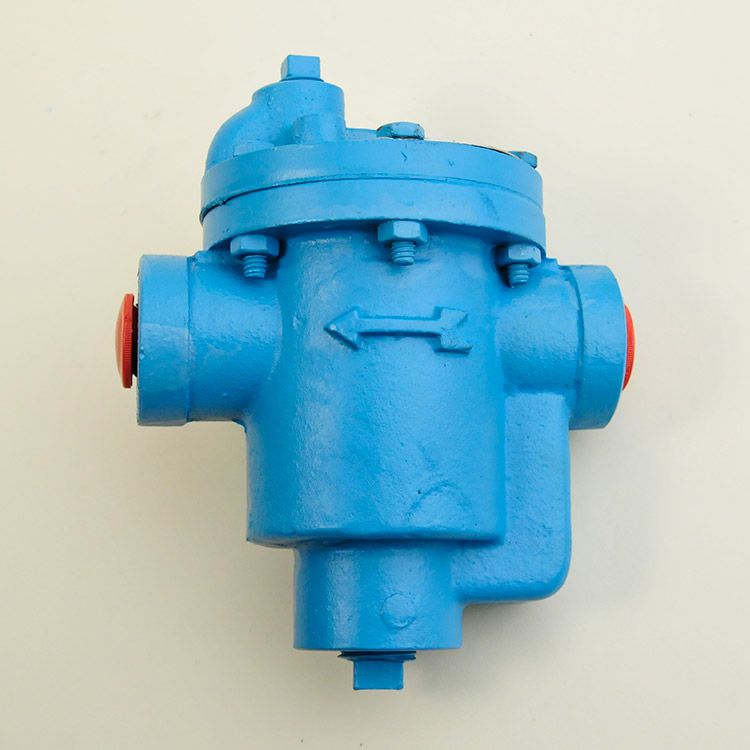

Mepco OBH-1150 - 1/2 Cast Iron In-Line Horizontal Bucket Trap

Product Description

The Mepco inverted bucket steam trap, model OBH-1150, features a half inch trap connection in an in-line horizontal design. This setup allows steam to enter from one side and condensate to exit from the opposite side. Inverted bucket traps utilize a mechanical advantage where the weight of the bucket operates a valve against system pressure. This design provides excellent resistance to wear, corrosion, and hydronic shock.

The OBH-1150 is constructed from cast iron and has a maximum operating pressure of 150 psi. It is suitable for use with heat exchange equipment, where efficient venting of air and non-condensable gases is essential. This product excels in purging air, managing dirt, and operating effectively under varying loads, even against back pressure.

• Inverted bucket steam trap with half inch connection
• Built to withstand up to 150 psi pressure
• Ideal for heat exchangers to vent air quickly

Product Highlights

This steam trap is designed for durability and efficiency, making it an essential component in steam systems.

Product Information

Standard Information

• Brand: Mepco
• Model: OBH-1150

Technical Specifications

• Steam Trap Type: Inverted Bucket
• Steam Trap Connection Size: 1/2 inch
• Max Pressure: 150 psi
• Steam Trap Mounting: In-Line Horizontal
• Body Material: Cast Iron
• Weight: 2.00 lbs
