Product Description

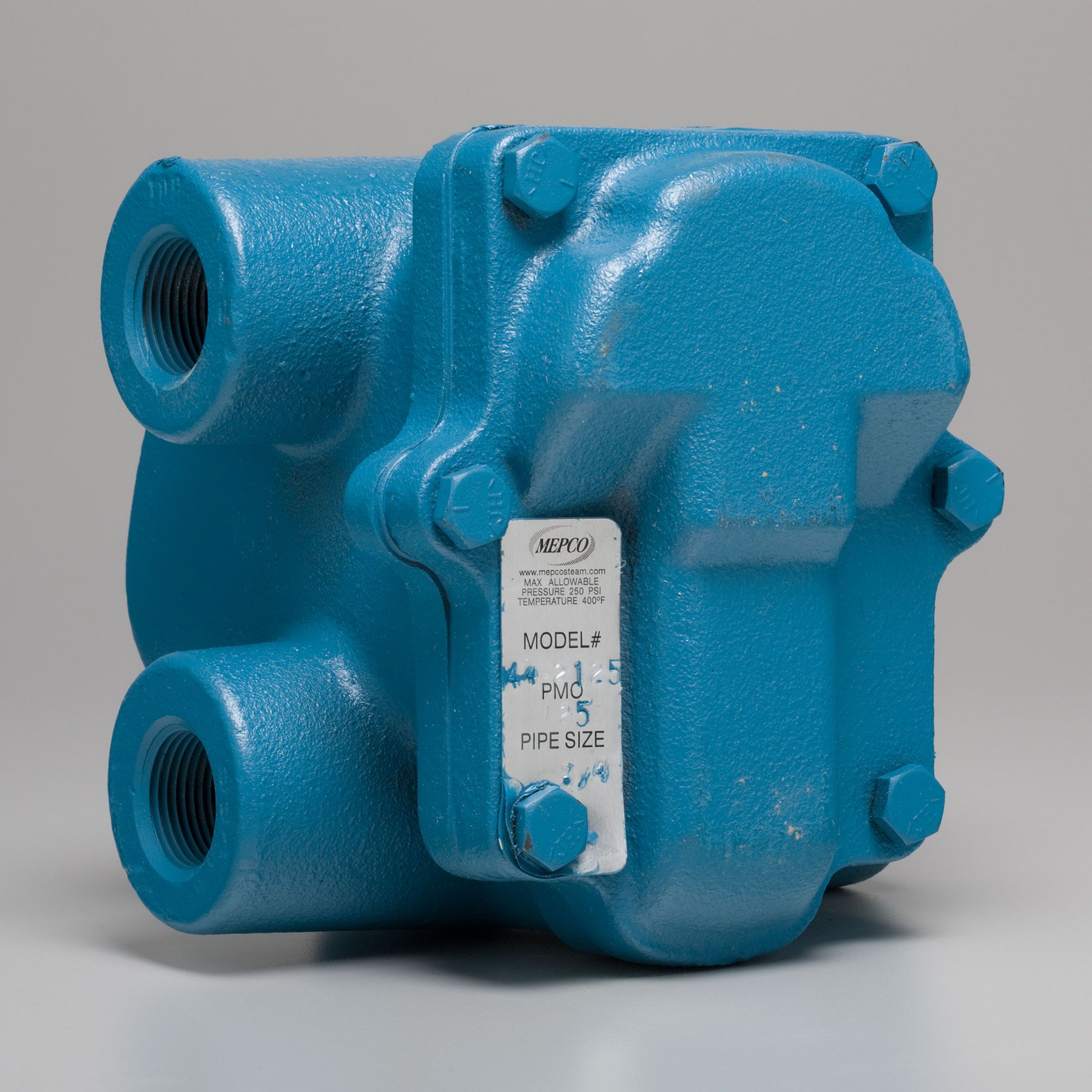

The Mepco float and thermostatic steam trap, model ML9618, is designed with a three-quarter inch trap connection and utilizes an H-pattern configuration. This design allows steam to enter from either side and condensate to discharge from the same or opposite side. The trap manages continuous drainage and is suitable for low, medium, and high pressure steam mains, featuring stainless steel internal components.
- Cast iron body with a maximum operating pressure of 125 psi.
- Handles up to 1,650 pounds of condensate per hour.
- Able to vent air and non-condensable gases quickly.
Product Highlights
This trap is effective for heat exchange applications and modulating pressures with varying loads. It excels in venting air, managing startup air loads, and functioning against back pressure.
Product Information
Standard Information
Technical Specifications
-
Series: 44 Series
-
Model: 44-2125
-
Steam Trap Type: Float & Thermostatic
-
Body Material: Cast Iron
-
Connection Size: 3/4 inch
-
Mounting Type: H-Pattern, Same Side
-
Max Pressure: 125 psi
-
Weight: 12.00 pounds
