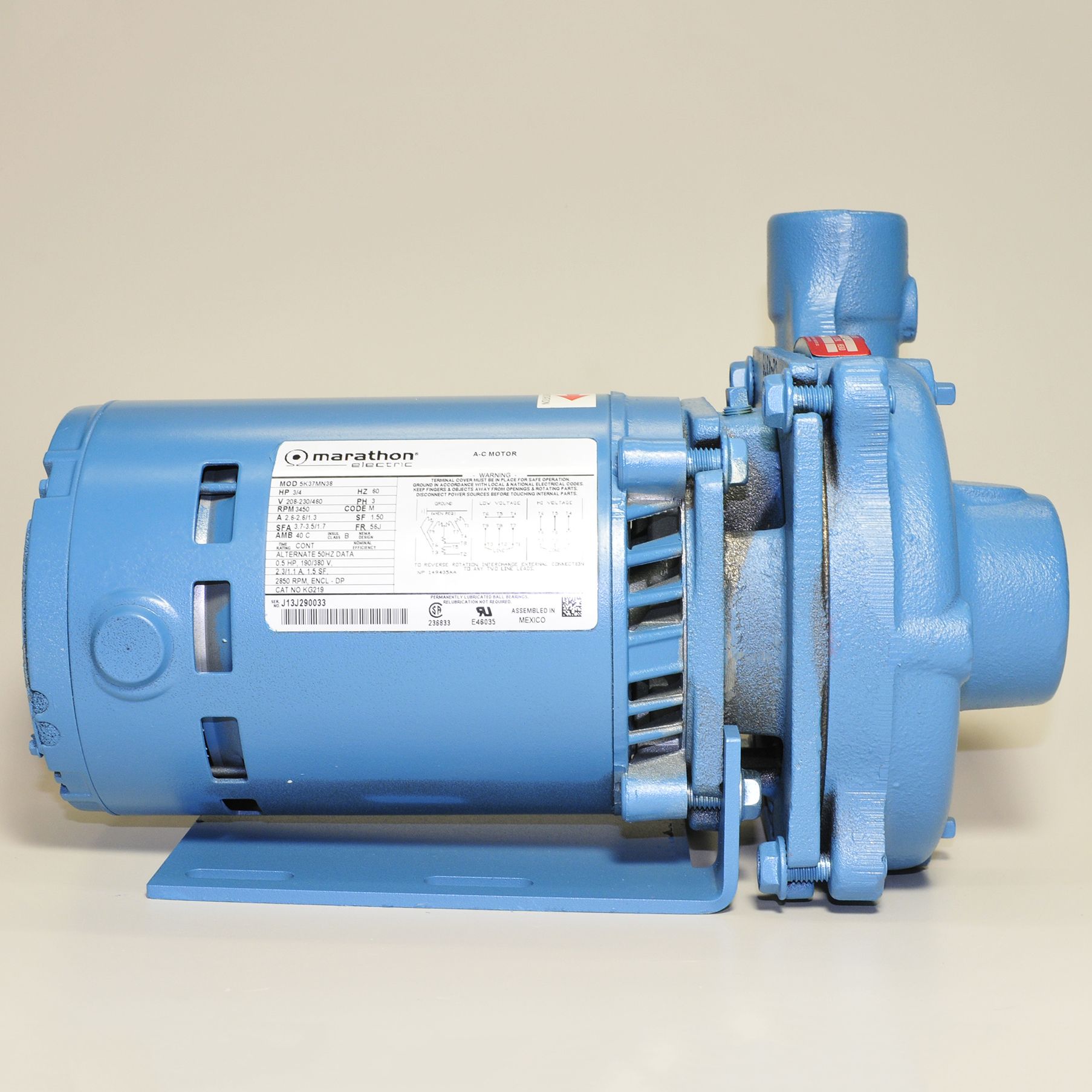

Mepco ML10804 - Type RC05 3/4 HP Cast Iron Centrifugal Pump

Product Description

Mepco ML10804 is a centrifugal pump designed for hydronic heating and cooling systems. The pump features a 1-1/4 inch end suction and a 1 inch top discharge. It operates with a three-phase, three-quarter horsepower motor running at three thousand four hundred fifty RPM and supports voltage options of two hundred eight to two hundred thirty or four hundred sixty volts.

• Three-phase, 3/4 HP motor
• Cast iron construction for durability
• Flexible installation with multiple discharge positions

Product Highlights

The Mepco Series RC05 pumps are ideal for commercial applications where efficiency is key. Its design allows easy access for service without disrupting the piping system.

Product Information

Standard Information

• Brand: Mepco
• Model: RC05

Technical Specifications

• MPN: ML10804

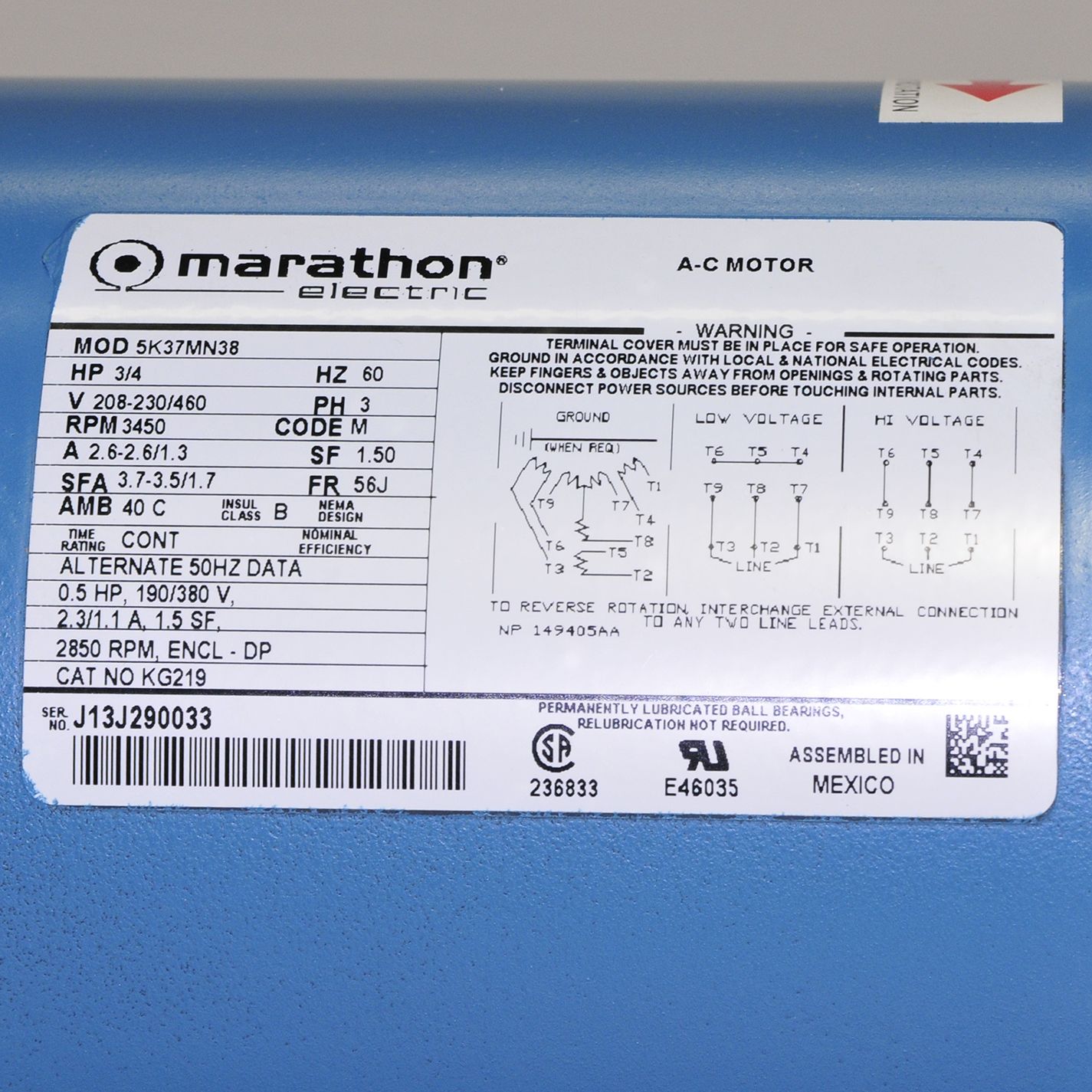

• Motor HP: 3/4 HP
• Motor Phase: 3 Ph
• Motor RPM: 3450 RPM
• Motor Voltage: 208-230/460V
• Max Temp: 230°F
• Weight: 48.00 lbs
• Pump Class: Centrifugal
• Pump Construction: Cast Iron-CI
• Pump Connection: Threaded
• Pump Mounting: Foot-Mounted
• Flanges Included: N/A
• Potable Water: No
• Motor Hertz: 60 Hz
