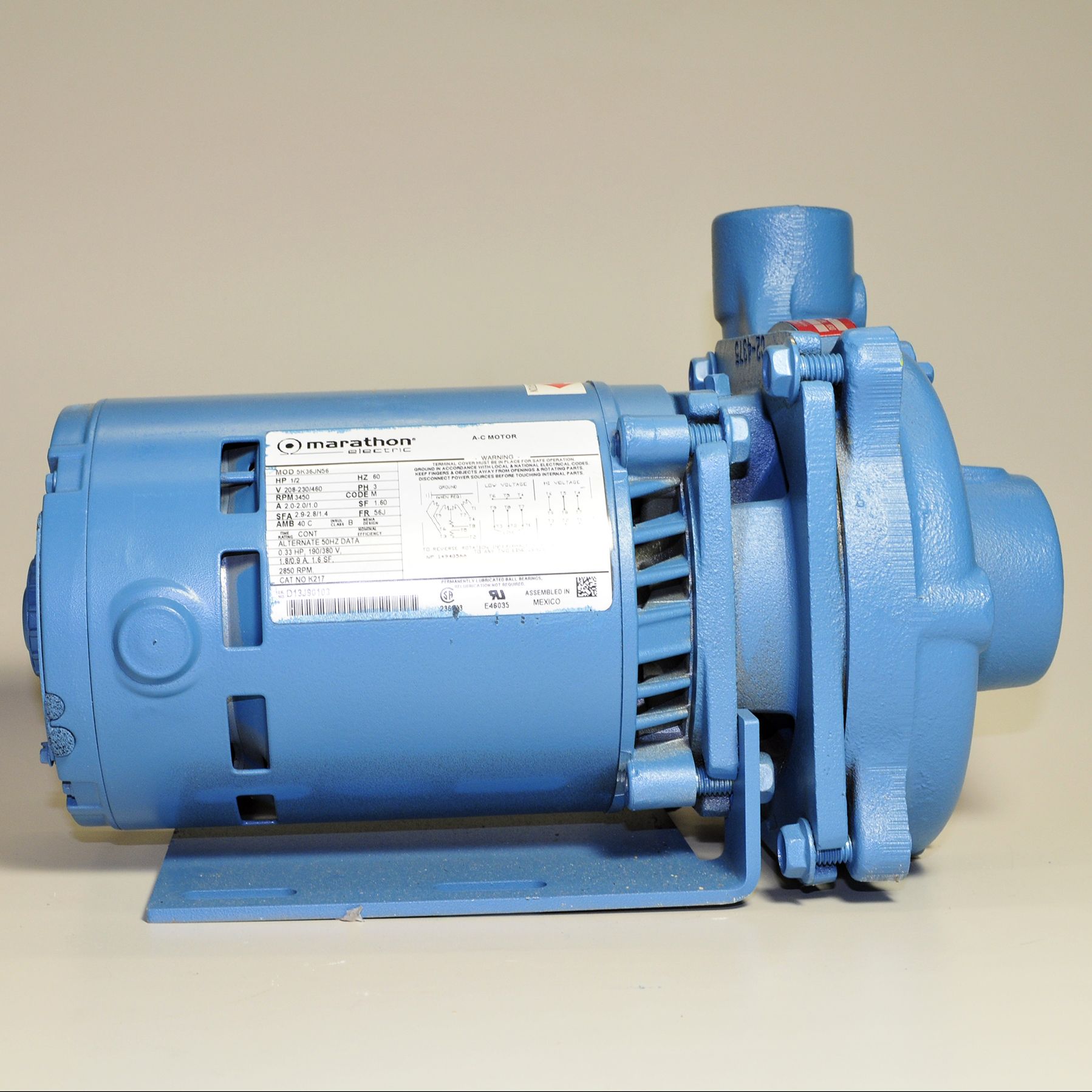

MEPCO ML10803 Type RC05 1/2 HP Cast Iron Centrifugal Pump

Product Description

The MEPCO ML10803 centrifugal pump, part of the Type RC05 series, is designed specifically for circulating water in closed loop hydronic heating and cooling systems, typically found in commercial settings. This pump offers robust performance with its 1/2 HP, three-phase motor that operates at 3450 RPM, suitable for a range of system demands.

• Features threaded end suction and top discharge for flexible system integration.
• Constructed with cast iron and includes bronze trimmings for durability and efficiency.
• The design permits back pull-out servicing without the need for system piping alterations.

Product Highlights

This model is well-adapted for commercial environments, ensuring effortless maintenance and reliable operation across various applications.

Product Information

Standard Information

• Brand: MEPCO
• MPN: ML10803

Technical Specifications

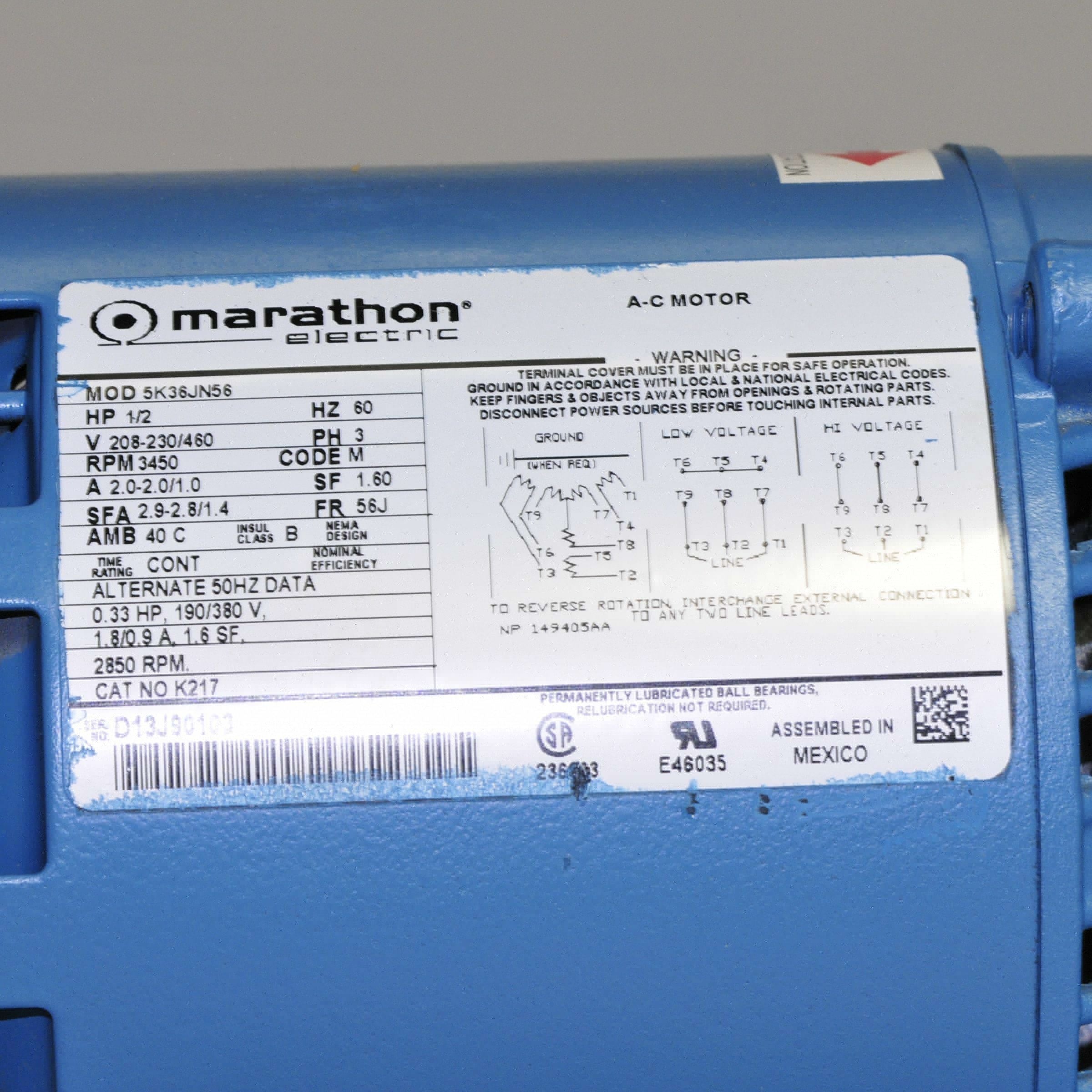

• Motor HP: 1/2 HP
• Motor Phase: 3 Ph
• Motor Voltage: 208-230/460V
• Max Temperature: 230°F
• Weight: 45.00 pounds
• Pump Class: Centrifugal
• Pump Mounting: Foot-Mounted
• Pump Connection: Threaded
