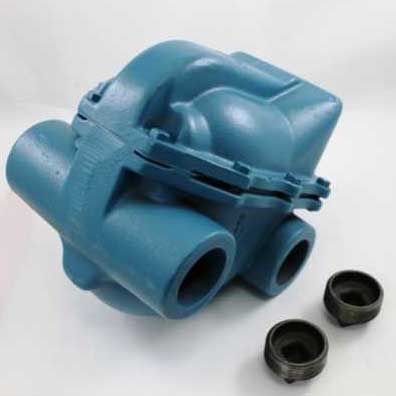

Mepco ML10072 Mepco 48-815 2 Cast Iron Float & Thermostatic Trap

Brand: MEPCO
SKU: ML10072
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12 pm
$975.37
$975.37

🔥 Get 5% off orders over $1,000. Discount applies automatically at checkout 🔥
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Mepco float and thermostatic high capacity steam trap, model ML10072, is designed with a two-inch connection in an H-pattern. This configuration allows steam to enter from either side while the condensate discharges from either the opposite or same side. This trap is suitable for both low and high pressure steam mains.

  • Stainless steel internal parts standard
  • 15 psi maximum operating pressure
  • Capacity of 24,000 pounds per hour

Product Highlights

The Mepco ML10072 is ideal for heat exchange applications requiring rapid air and non-condensable gas venting.

Product Information

Standard Information

  • Brand: Mepco
  • MPN: ML10072

Technical Specifications

  • Series: 48 Series
  • Model: 48-815
  • Steam Trap Type: Float & Thermostatic
  • Body Material: Cast Iron
  • Steam Trap Connection Size: 2 inches
  • Steam Trap Mounting: H-Pattern, Same Side
  • Max Pressure: 15 psi
  • Weight: 48.00 pounds

MEPCO

Mepco ML10072 Mepco 48-815 2 Cast Iron Float & Thermostatic Trap

$975.37

MEPCO

Mepco ML10072 Mepco 48-815 2 Cast Iron Float & Thermostatic Trap

$975.37
