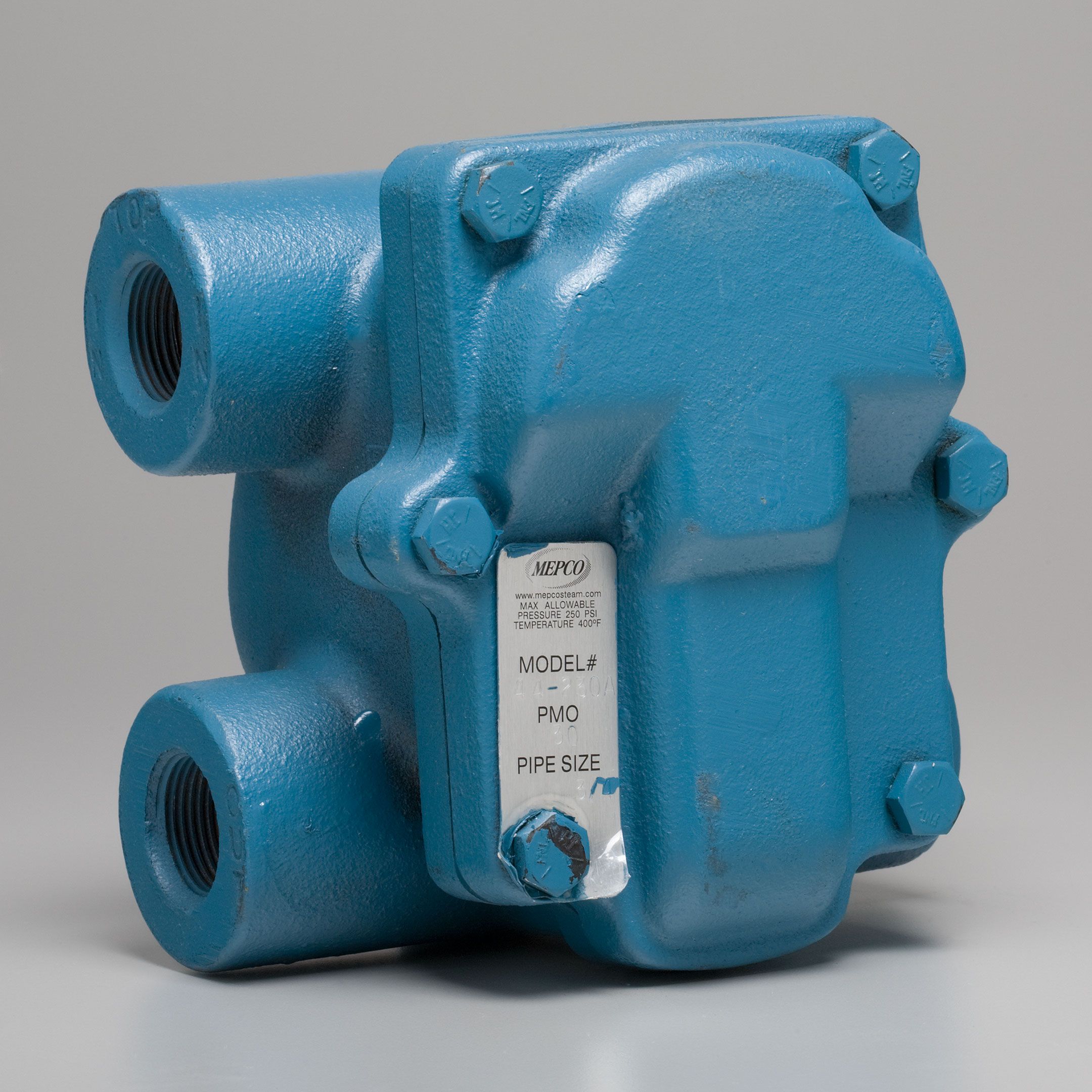

Mepco ML10020 44-230 - 3/4 Cast Iron Float & Thermostatic Trap

Product Description

The Mepco float and thermostatic steam trap model 44-230 features a three-fourths trap connection in a same-side H-pattern. This configuration allows steam to enter from either side while enabling condensate to discharge from the opposite or same side. The 44 series traps are designed for continuous drainage suitable for low, medium, and high-pressure steam applications. They come with stainless steel internal components for enhanced durability.

• Cast iron body with stainless steel internals.
• 30 psi maximum operating pressure.
• Capacity of 2,300 pounds per hour.

Product Highlights

This model is recommended for use in heat exchange systems that require the rapid venting of air and non-condensable gases. Perfect for modulating pressures and varying loads, it is effective in handling startup air loads while functioning efficiently against back pressure.

Product Information

Standard Information

• Brand: Mepco
• MPN: ML10020

Technical Specifications

• Model: 44-230
• Series: 44 Series
• Steam Trap Type: Float & Thermostatic
• Body Material: Cast Iron
• Steam Trap Connection Size: 3/4
• Steam Trap Mounting: H-Pattern, Same Side
• Max Pressure: 30 psi
• Weight: 12.00
