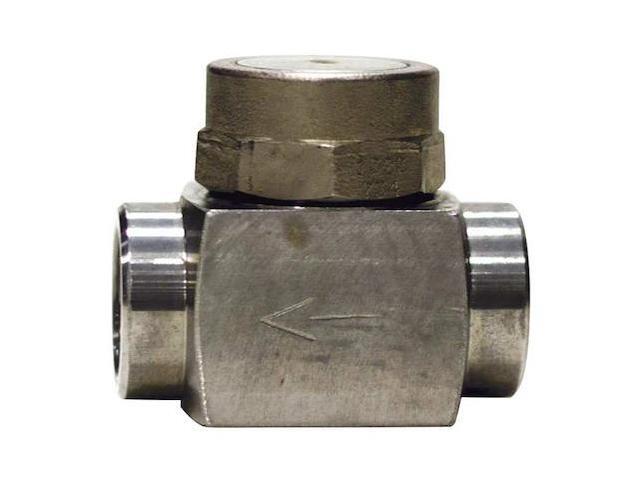

Mepco MD-88N Steam Trap 1 Inch NPT Outlet

Product Description

The Mepco MD-88N steam trap features a one-inch NPT outlet and a stainless steel disc with a straight pipe configuration. This steam trap is ideal for drip legs, process equipment, and steam tracing applications. It supports horizontal or vertical installation and includes an air vent. Constructed from durable stainless steel, this model incorporates an in-line design.

• Condensate capacity of two thousand eight hundred twenty pounds per hour
• Operating pressure ranging from four psi to six hundred psi
• Three ports with air vent included

Product Highlights

The Mepco steam trap is effective for various applications in HVAC systems.

Product Information

Standard Information

• Brand: Mepco
• Type: HVACR and Appliance Controls - Steam Traps

Technical Specifications

• Item Length: 4.3 inches
• Item Width: 3.4 inches
• Item Weight: 2.8 pounds
• Model: MD-88N
• Actuator Material: Stainless Steel
• Body Material: Stainless Steel
• Cap Material: Stainless Steel
• Distance Between Inlet and Outlet Port: 3 5/16 inches
