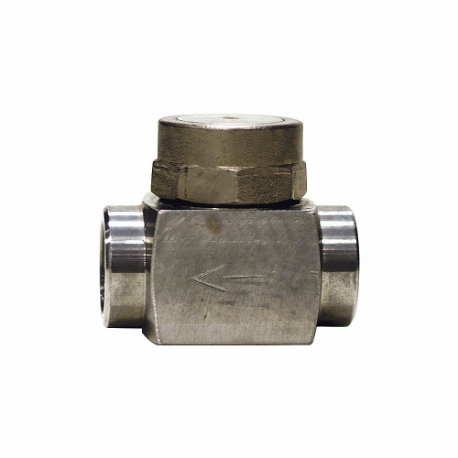

MEPCO MD-44N Thermodynamic Disc Steam Trap

Product Description

The MEPCO MD-44N is a thermodynamic disc steam trap suitable for steam systems. It has a robust design made from stainless steel, ensuring resistance to corrosion and fatigue. The unit features 1/2 inch FNPT connections that support in-line configurations. This steam trap is ideal for use in applications like drip legs, process equipment, and steam tracing.

• Steam trap type: Thermodynamic disc.
• Constructed with durable stainless steel components.
• Versatile for horizontal or vertical installation.

Product Highlights

Product Information

Standard Information

• Type: Disc steam trap
• Application: Drip legs, process equipment, steam tracing

Technical Specifications

• MPN: MD-44N
• Configuration: In-Line
• Body Material: Stainless Steel
• Actuator Material: Stainless Steel
• Cap Material: Stainless Steel
• Disc Material: Stainless Steel
• Port Connection Type: NPT
• Port Connection Gender: Female
• Port Connection Size: 1/2 inch
• Maximum Operating Pressure: 600 psi
• Downstream Pressure Range: 0 psi to 595 psi
• Operating Temperature - Maximum: 800°F
• Overall Length: 2 11/16 inches
• Overall Width: 1 9/16 inches
• Overall Depth: 2 3/8 inches
• Resistance Properties: Corrosion Resistant, Fatigue Resistant
• Installation Orientation: Horizontal/Vertical
