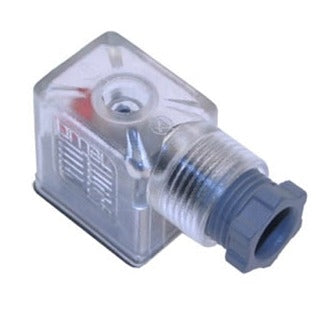

Mencom VBC-022-00 Solenoid Valve Connector 50V 10A (Form B 10mm Right Angle)

Product Description

Mencom VBC-022-00 is a field-wireable DIN 43650 Form B (10 mm) solenoid valve connector designed for quick-disconnect valve applications. The connector provides 2 poles plus ground, LED indicator with flyback diode for coil suppression, and is rated 50 V at 10 A with IP65 protection and a .5-NPT mounting thread. It accepts AWG 16 to 20 conductors and is suitable for valve and solenoid interconnections.

• Field-wireable DIN 43650 Form B design with 2 poles plus ground and female right-angle head
• Circuitry includes LED indicator with flyback diode for coil suppression; rated 50 V, 10 A
• IP65 protection, .5-NPT mounting thread, supports AWG 16 (upper) and AWG 20 (lower)

Product Highlights

DIN 43650 Form B field-wireable solenoid connector, 2 poles + ground, LED with flyback diode, 50 V/10 A, IP65, .5-NPT mount

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: VBC-022-00

Technical Specifications

• Brand: MENCOM
• Manufacturer Part Number: VBC-022-00
• Product Type: Solenoid Valve Connector
• Connector Standard: DIN 43650 / EN 175301-803 Form B
• Series / Form Factor: Form B 10mm
• Contact Spacing: 10 mm
• Poles: 2 + ground
• Pin Count: 3
• Ground Wire: Yes
• Circuit: LED with flyback diode
• Rated Voltage: 50 V
• Rated Current: 10 A
• IP Rating: IP65
• Mounting Thread: .5-NPT
• Orientation: Female right angle
• Wire Gauge (AWG): Upper 16, Lower 20
• Body Material: Polyamide
• Operating Temperature: -25 to 90 °C
• Weight: 0.03 lb
• Connection: Field-wireable
• Cable Entry / Connection Thread: .5-NPT
• Approvals: CE, RoHS
