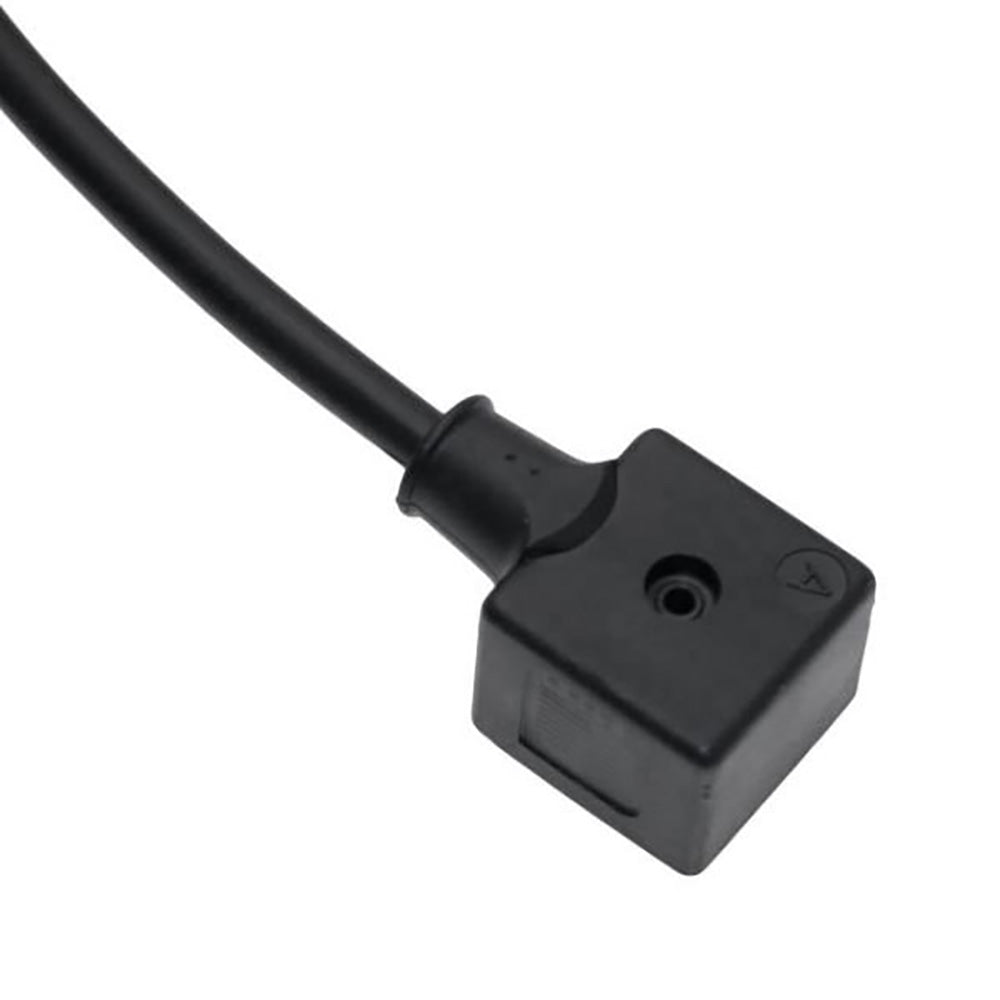

Mencom VAN-530-00 Solenoid Valve Connector 250V 10A (5 Meter)

Product Description

The Mencom VAN-530-00 is a 4-pole DIN 43650 Form A (18 mm) solenoid valve connector with a 5 meter overmolded PVC cable, rated 250 V and 10 A. It provides a quick-disconnect connection to solenoid valves and can be terminated to flying leads for integration with valve coils and control circuitry. The assembly is RoHS compliant, supports common suppression options (MOVs, flyback diodes, braided rectifiers), and is rated IP65 with an operating range of -25 to 90 C.

• DIN 43650 Form A (18 mm) 4-pole connector to flying leads
• 5 meter overmolded PVC cable, 4-wire cordset
• Rated 250 V, 10 A; protection rating IP65; operating temperature -25 to 90 C; RoHS compliant

Product Highlights

4-pole DIN A solenoid valve cable assembly, 5 m length, 250 V/10 A rating, IP65

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: VAN-530-00
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: VAN-530-00
• Brand: Mencom
• Poles: 4
• Connector Form: Form A (DIN 43650, 18 mm)
• Connection Description: DIN Form A to flying leads
• Number of Wires: 4
• Cable Length: 5 meters
• Cable Type: Overmolded PVC
• Rated Voltage: 250 V
• Rated Current: 10 A
• Protection Rating: IP65
• Operating Temperature: -25 to 90 C
• RoHS Compliant: Yes
• Country of Origin: United States
