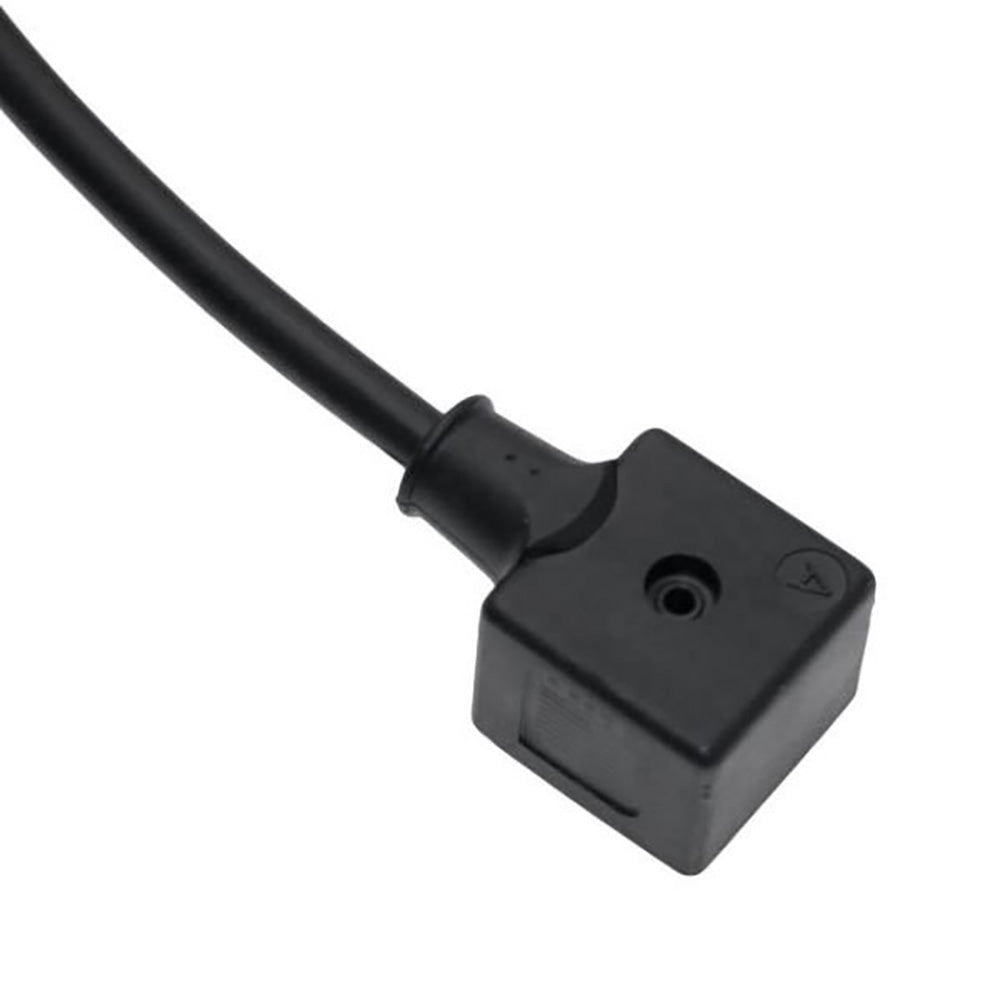

Mencom VAN-230-00 Solenoid valve connector 4 pole Form A 18mm 250 V 10 A (2 meter)

Product Description

The Mencom VAN-230-00 is a DIN 43650 Form A (18 mm) solenoid valve connector cordset with a 4‑pole configuration and a 2 meter cable, rated 250 V and 10 A. It provides a quick-disconnect solution for solenoid valve installations and maintenance and is offered in field‑wireable and overmolded cable versions. Variants include optional suppression components such as MOVs, flyback diodes, and braided rectifiers for coil protection.

• DIN 43650 Form A (18 mm) connector with 4 pole configuration for solenoid valve connections
• 2 meter cable; 18 AWG conductors; available as overmolded or field-wireable cordset
• Rated 250 V, 10 A; IP65 protection; optional MOVs, flyback diodes, and braided rectifiers

Product Highlights

DIN 43650 Form A 18mm cordset, 4 pole, 2 m cable, 250 V 10 A, IP65; options for suppression components

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: VAN-230-00

Technical Specifications

• Brand: MENCOM
• Manufacturer Part Number: VAN-230-00
• Product Type: Cordset
• Connection Type: DIN Form A (18 mm)
• Poles: 4
• Number of Wires: 4
• Cable Length: 2 meters
• Cable Type: PVC
• Wire Gauge: 18 AWG
• Voltage Rating: 250 V
• Rated Current: 10 A
• Protection Rating: IP65
• Operating Temperature: -40 C to 80 C
• Gasket: Thermoplastic flat gasket
• Contact Material: Silver plated copper alloy
• Housing Material: Polyamide
• Screw Material: Zinc plated steel
• Ground Wire: Yes
• Optional Circuitry: MOVs, flyback diodes, braided rectifiers
• Approvals: CE, RoHS
• Cable Outer Diameter: 0.27 in
• Connection Description: DIN Form A to flying leads
• Net Weight: 0.42 lbs
• Cable Jacket Color: Black
