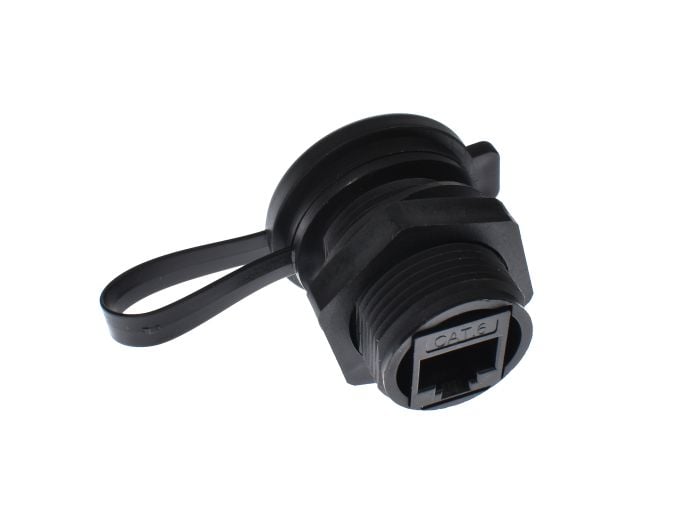

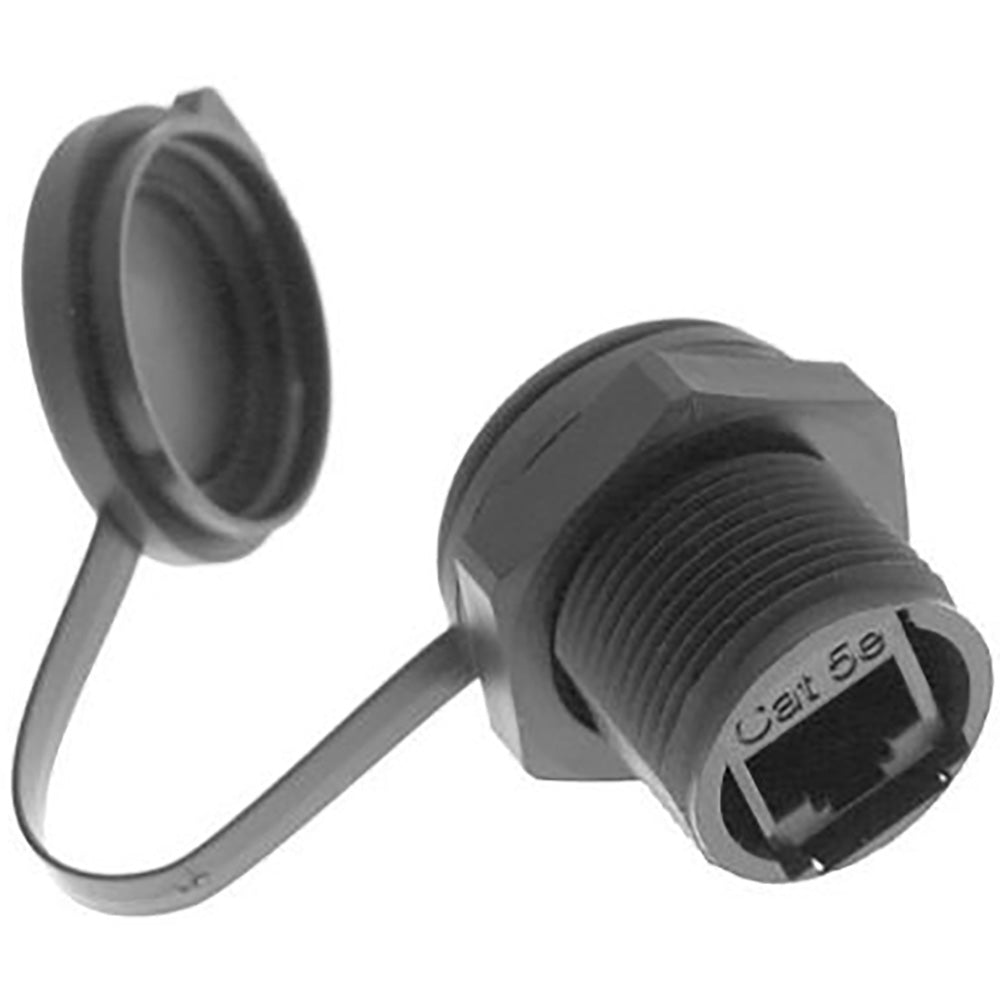

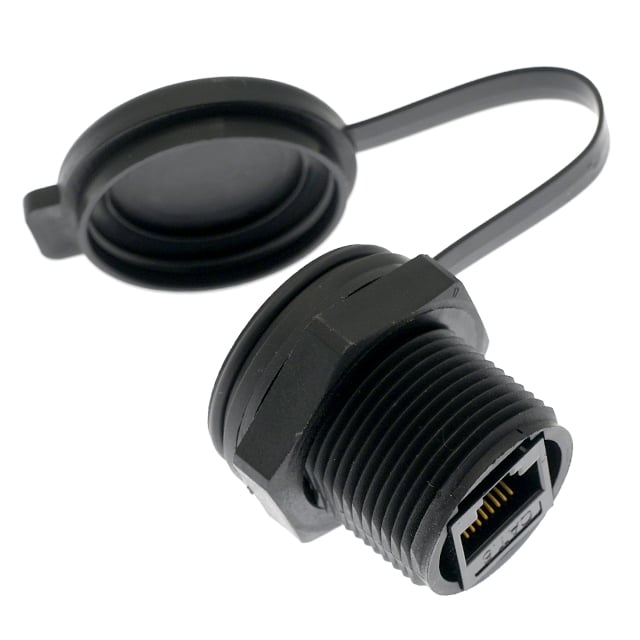

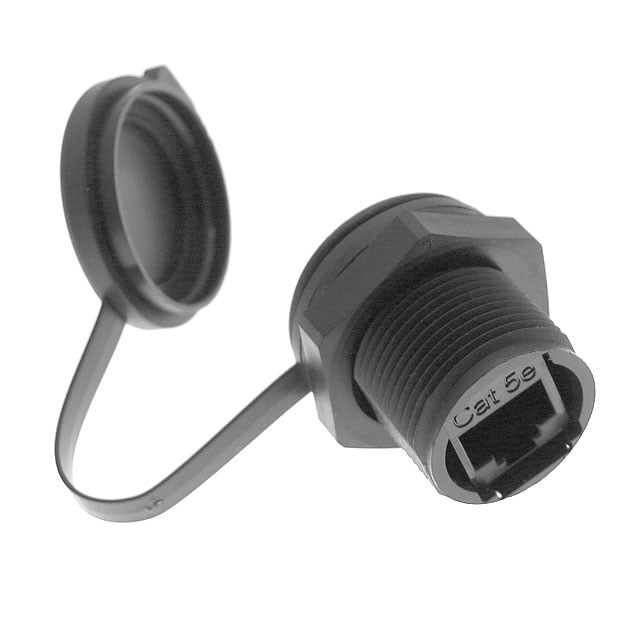

Mencom RJ45-M25-PA RJ45 Port Adapter M25 (Straight)

Product Description

The Mencom RJ45-M25-PA is a panel-mounted remote access interface that provides a single rear RJ45 port in a polyamide M25 x 1.5 housing. It includes a protective cover, Cat 5 rated connector, and IP65 ingress protection for sealed Ethernet connections. Designed for through-panel mounting as a low-profile panel interface connector, it offers pass-through access to PLCs, computers, and other programmable devices without opening the control panel.

• Single rear RJ45 port with protective cover; Cat 5 rated connector
• M25 x 1.5 through-panel mounting, low-profile receptacle shell
• Polyamide (plastic) housing with IP65 ingress protection and plastic shell coupling nut

Product Highlights

Low-profile M25 panel interface connector providing sealed RJ45 pass-through access (IP65)

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: RJ45-M25-PA

Technical Specifications

• Manufacturer: Mencom
• Manufacturer Part Number: RJ45-M25-PA
• Brand: MENCOM
• Product Series: PIC Plastic Port Adapters
• Product Type: Panel Interface Connector
• Connector Type: RJ45
• Number of Ports: 1 (rear RJ45)
• Mounting Type: Through-panel mount
• Mounting Hole: M25 x 1.5
• Material: Polyamide (plastic)
• Ingress Protection: IP65
• Rated Category: Cat 5
• Angle: Straight
• Shell Coupling Nut Material: Plastic
• Net Weight: 0.04 lbs
• Gross Weight: 0.045 lbs
• Housing: M25-LP
• Description: Panel-mounted RJ45 port adapter for pass-through Ethernet access to devices inside control panels
• Series: Panel Interface Connectors
• Certifications: UL508A; UL50; UL50E
