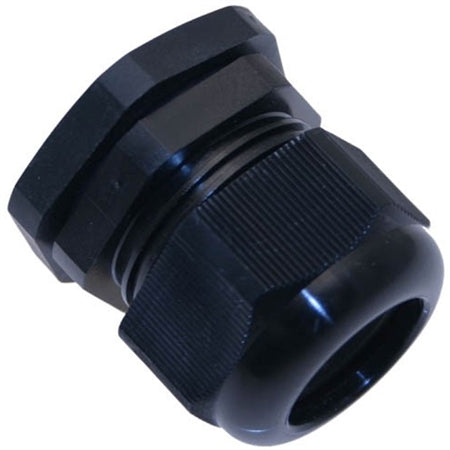

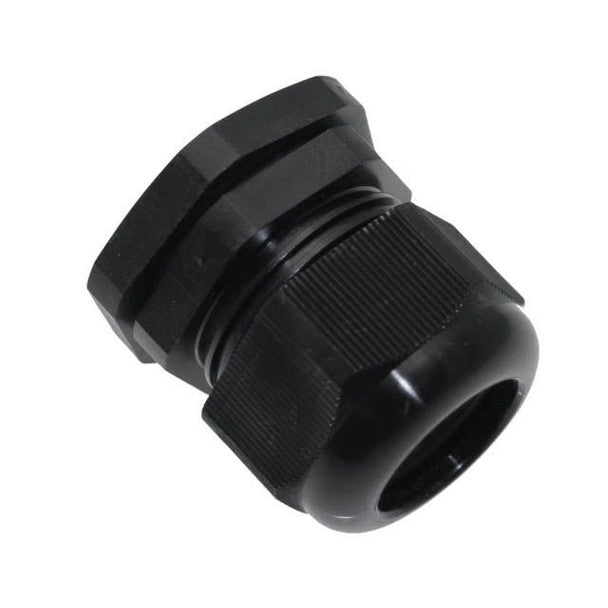

Mencom PCGU-M50-B M50 Plastic Cable Gland (21-35 mm)

Product Description

Mencom PCGU-M50-B is an M50 plastic cable gland that secures and seals cable entries while providing strain relief for cables with 21 to 35 mm outside diameter. The gland uses a dual grommet system and includes a locknut and O-ring for panel mounting with M50 x 1.5 threads. It is rated IP68 and is UL and CUL recognized, suitable for industrial and electrical cable entry applications.

• Dual grommet system (inner TPE, outer CR/NBR) accommodates 0.819 to 1.365 in (21–35 mm) cable diameters
• Polyamide body with M50 x 1.5 mounting thread, locknut and O-ring included; tightening torque 7.5 Nm
• Ingress protection IP68 and UL/CUL recognition; operating temperature range -20 C to 100 C

Product Highlights

M50 dual-grommet plastic cable gland for 21–35 mm cables with IP68 rating and UL/CUL recognition

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: PCGU-M50-B

Technical Specifications

• Brand: Mencom
• Manufacturer Part Number: PCGU-M50-B
• Product Type: Cable gland
• Series: Plastic Gland
• Thread Size: M50 x 1.5
• Mounting Hole Clearance: 50.2 mm (1.977 in)
• Cable Diameter Range: 21 - 35 mm (0.819 - 1.365 in)
• Cord Grip Material: Polyamide
• Inner Grommet Material: TPE
• Outer Grommet Material: CR/NBR
• Includes: Locknut and O-ring
• Ingress Protection: IP68
• Approvals: UL and CUL recognized
• Tightening Torque: 7.5 Nm
• Operating Temperature: -20 C to 100 C
• Weight: 0.0795 lb
• Unit: Each
