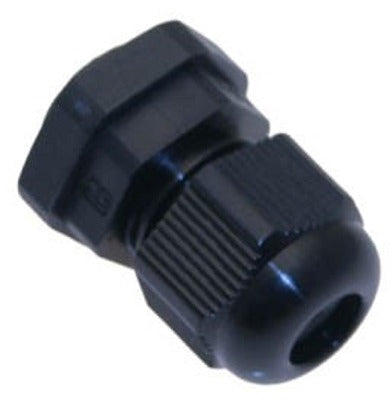

Mencom PCGU-M16-B Plastic Cable Gland M16 (3-10 mm Straight)

Product Description

Mencom PCGU-M16-B is a plastic metric threaded cable gland designed to provide strain relief and environmental sealing for cables. The M16 gland accepts cable diameters from 0.117 to 0.39 inches (3 to 10 mm) and uses a dual grommet system (TPE inner, CR/NBR outer) to accommodate a wider range of cable sizes while maintaining IP68 ingress protection.

• M16 x 1.5 mounting thread with supplied locknut and male M16 threads
• Dual grommet system (TPE inner, CR/NBR outer) for 0.117–0.39 in (3–10 mm) cable range; inner seal removable for larger cables
• IP68 rated for dust and prolonged immersion; UL and CUL recognized; tightening torque 2 Nm; temperature range -20 C to 100 C

Product Highlights

Polyamide (plastic) M16 cable gland with dual grommets, locknut, IP68 protection, and 3–10 mm cable range for strain relief and waterproof sealing.

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: PCGU-M16-B

Technical Specifications

• Manufacturer: Mencom
• Manufacturer Part Number: PCGU-M16-B
• Brand: Mencom
• Product Type: Cable gland
• Series: PCGU
• Thread Size: M16
• Mounting Thread: M16 x 1.5
• Angle: Straight
• Cable Diameter Range: 0.117 - 0.39 in (3 - 10 mm)
• Number of Cables: 1
• Body Material: Polyamide (plastic)
• Inner Grommet Material: TPE
• Outer Grommet Material: CR/NBR
• Coupling Nut Material: Plastic
• Includes Locknut: Yes
• Ingress Protection: IP68
• Approvals: UL and CUL recognized
• Tightening Torque: 2 Nm
• Temperature Range: -20 C to 100 C
• Mounting Hole Clearance: 16.2 mm
• Weight: 0.019 lbs
• Gender: Male
