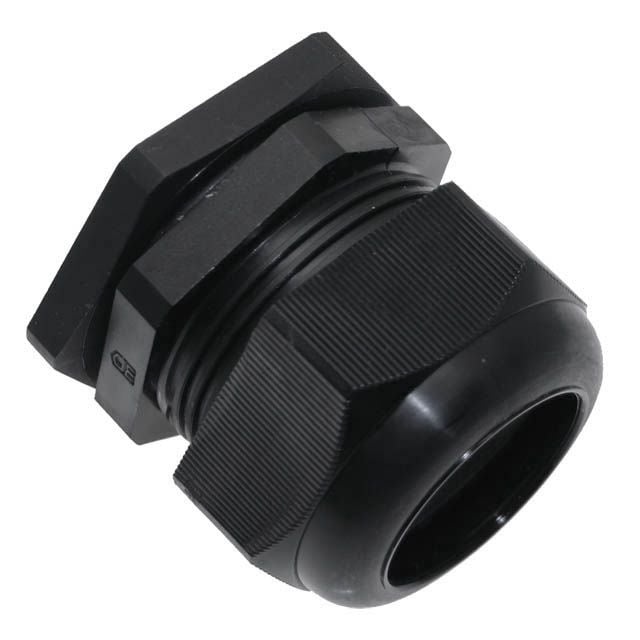

Mencom PCG-42-B PG42 Plastic Gland 1.18-1.50 in

Product Description

Mencom PCG-42-B is a PG42 plastic cable gland designed to provide strain relief and environmental sealing for a single round cable with a diameter range of 1.18 to 1.50 inches (30-38 mm). The polyamide body uses a neoprene grommet and Buna-N O-ring to achieve IP68 ingress protection and includes a locknut for PG42 mounting. The gland is a straight bushing-grip style with a temperature range of -20 C to 100 C and carries UL and CUL listings.

• PG42 threaded plastic cable gland for one round cable; cable diameter range 1.18–1.50 in (30–38 mm); straight bushing-grip style.
• Polyamide body with neoprene grommet and Buna-N O-ring; rated IP68 (watertight) and supplied with a locknut for panel mounting.
• Operational temperature -20 C to 100 C; tightening torque 7.5 Nm; UL and CUL listed.

Product Highlights

PG42 plastic cable gland; IP68 rated; fits 1.18–1.50 in cables; includes locknut and Buna-N O-ring.

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: PCG-42-B

Technical Specifications

• Brand: Mencom
• Manufacturer Part Number: PCG-42-B
• Product Type: Cable Gland
• Series: PCG (Plastic Gland)
• Material: Polyamide (plastic)
• Grommet Material: Neoprene
• O-Ring Material: Buna-N
• Thread Size: PG42 (PG-42)
• Mounting Thread: PG-42
• Cable Diameter Range: 1.18 - 1.50 in (30 - 38 mm)
• Number of Cables: 1
• Style: Straight, bushing-grip
• Protection Rating: IP68
• Temperature Range: -20 C to 100 C
• Tightening Torque: 7.5 Nm
• Nut Included: Yes (locknut supplied)
• Weight: 0.236 lb
• Approvals/Certifications: UL, CUL listed
