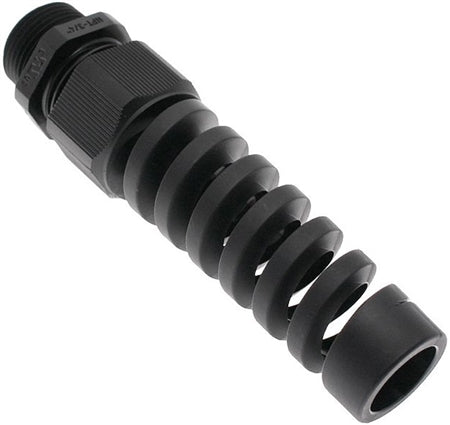

Mencom PCG-3/4-BS Plastic Cable Gland 0.75 Npt

Product Description

The MENCOM PCG-3/4-BS is a plastic cable gland designed to provide flex strain relief and IP68-rated protection against dust and water ingress. This NPT-style gland accepts a 0.75-inch NPT thread and accommodates cable diameters from 0.512 inches to 0.708 inches. The black plastic construction suits indoor and outdoor enclosure applications. Licensed electricians and panel builders install this component when terminating cables into control enclosures, junction boxes, and electrical panels where environmental sealing and mechanical strain relief are required.

This cable gland is suited for use in residential and commercial electrical installations where cables enter enclosures through threaded knockouts. It performs well in applications requiring a secure, sealed cable entry point that resists dust intrusion and water exposure up to IP68 standards. The 0.75-inch NPT thread is a common U.S. trade size, making this gland compatible with standard NPT-threaded conduit hubs and enclosure entry points. Note that NPT-style cable glands in this series are not supplied with a locknut.

Key Features

• IP68-rated sealing against dust and water ingress
• Flex strain relief protects cable jacketing at the entry point
• 0.75-inch NPT thread fits standard U.S. enclosure knockouts and hubs
• Cable diameter range: 0.512 inches to 0.708 inches
• Black plastic construction resists corrosion
• Sold individually as a single unit — locknut not included

Compatibility

Designed as an OEM-style strain relief fitting for electrical enclosures, junction boxes, and control panels with 0.75-inch NPT threaded entry points. Locknut is not included with this NPT-style gland and must be sourced separately if required.

Installation Notes

Installation is performed by a licensed electrician or qualified panel builder. De-energize all circuits before opening any enclosure or working near live terminals. Thread the gland into the NPT knockout by hand first, then tighten with the appropriate spanner or adjustable wrench — do not overtighten plastic fittings. Verify the sealing grommet is seated correctly around the cable jacket to maintain the IP68 rating after installation.

Technical Specifications

• Thread Type: 0.75-inch NPT
• Cable Diameter Range: 0.512 inches to 0.708 inches
• Material: Plastic
• Color: Black
• IP Rating: IP68
• Locknut Included: No
• Unit of Measure: Each
• UNSPSC Code: 27110000

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: PCG-3/4-BS
