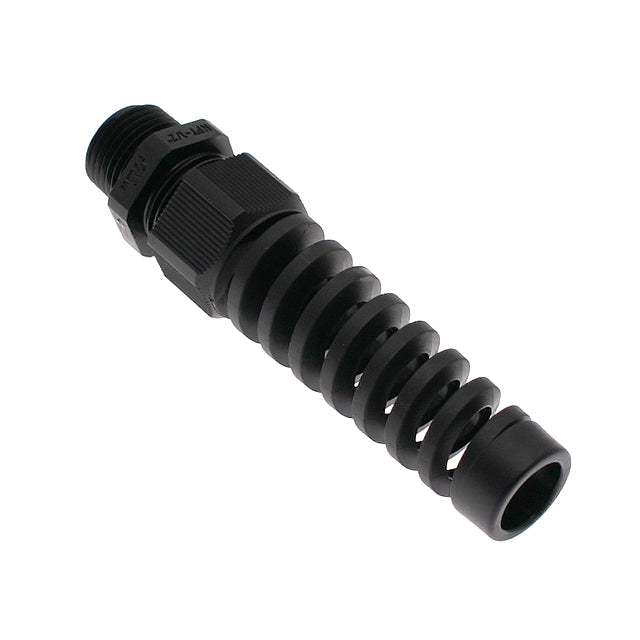

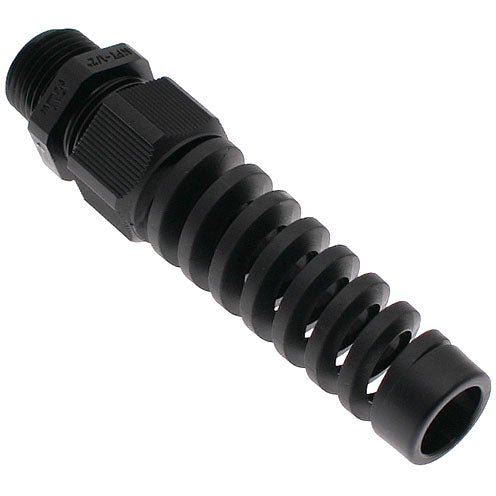

Mencom PCG-1/2X-BS Plastic Flex Cable Gland (1/2 inches Npt, 0.197-0.354 in)

Product Description

Mencom PCG-1/2X-BS is a polyamide flex cable gland with a 1/2" NPT mounting thread that provides liquid-tight cord grip and strain relief for cables 0.197–0.354 in (5–9 mm). A neoprene grommet and flex nut reduce cable kinking and chafing while maintaining IP68 protection against dust and prolonged immersion. Rated for -20 C to 100 C and recognized by UL and CUL, it is suitable for enclosure cable entry and use with rectangular hoods.

• Polyamide body with neoprene grommet and flex strain relief
• 1/2" NPT mounting thread; fits cables 0.197–0.354 in (5–9 mm)
• IP68 ingress protection; temperature range -20 C to 100 C; tightening torque 3.75 Nm

Product Highlights

Polyamide IP68 cable gland with flex nut and neoprene seal for 0.197–0.354 in cables, 1/2" NPT thread, UL and CUL recognized.

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: PCG-1/2X-BS

Technical Specifications

• Brand: MENCOM
• Manufacturer Part Number: PCG-1/2X-BS
• Model: PCG-1/2X-BS
• Gland Type: Plastic NPT threaded flex cable gland
• Mounting Thread: 1/2" NPT
• Cable Range (in): 0.197 - 0.354
• Cable Range (mm): 5 - 9
• Body Material: Polyamide
• Grommet Material: Neoprene
• Flex/Strain Relief: Flex nut / flex strain relief
• Ingress Protection: IP68
• Temperature Range: -20 C to 100 C
• Tightening Torque: 3.75 Nm
• Approvals: UL recognized; CUL recognized
• Nut Supplied: No
• Compatibility: Works with ILME rectangular hoods
