Mencom PCG-1/2E Plastic Gland .5-NPT (0.512-0.708 in) Per Each

Product Description

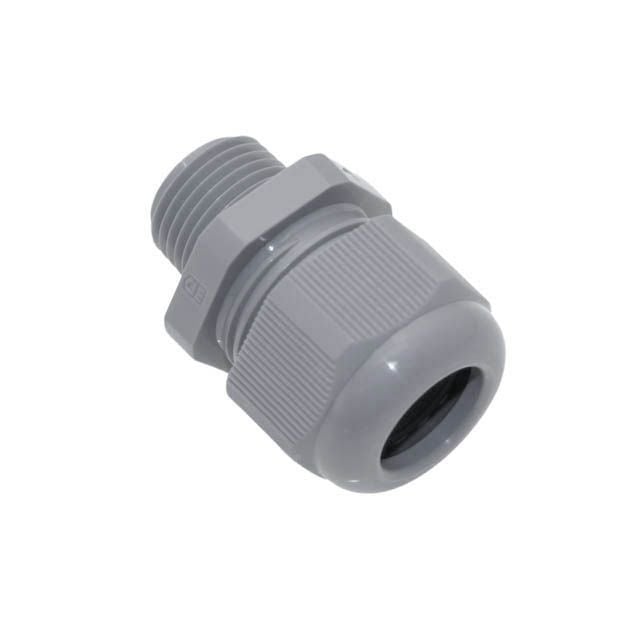

The Mencom PCG-1/2E is a plastic cable gland with a .5-NPT male thread that provides strain relief and IP68 protection against dust and water. It clamps cable diameters from 0.512 to 0.708 inches and mounts into .5-NPT openings; a nut is not supplied. The gland is intended for sealing cable entries on enclosures and panels where waterproof and dustproof connections are required.

• .5-NPT male thread for mounting into NPT openings
• Clamping range: 0.512 to 0.708 inches for cable sealing and strain relief
• Plastic construction with IP68 rating; nut not supplied

Product Highlights

Plastic .5-NPT cable gland; IP68 sealing; clamps 0.512–0.708 in; no nut supplied

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: PCG-1/2E
• Country of Origin: US

Technical Specifications

• Brand: Mencom
• Manufacturer Part Number: PCG-1/2E
• Product Type: Cable Gland
• Component Type: Cable Gland
• Series: Plastic Gland
• Thread Size: .5-NPT
• Clamping Range: 0.512 - 0.708 in
• Material: Plastic
• IP Rating: IP68
• Gender: Male
• Nut Supplied: No
• Weight: 0.0219 lb
• Color: Gray
• Unit of Measure: Each
• Country of Origin: US
• ECCN: EAR99
• RoHS: Conflicting (listed both compliant and not compliant)
• Manufacturer Status: Discontinued / End of Life
