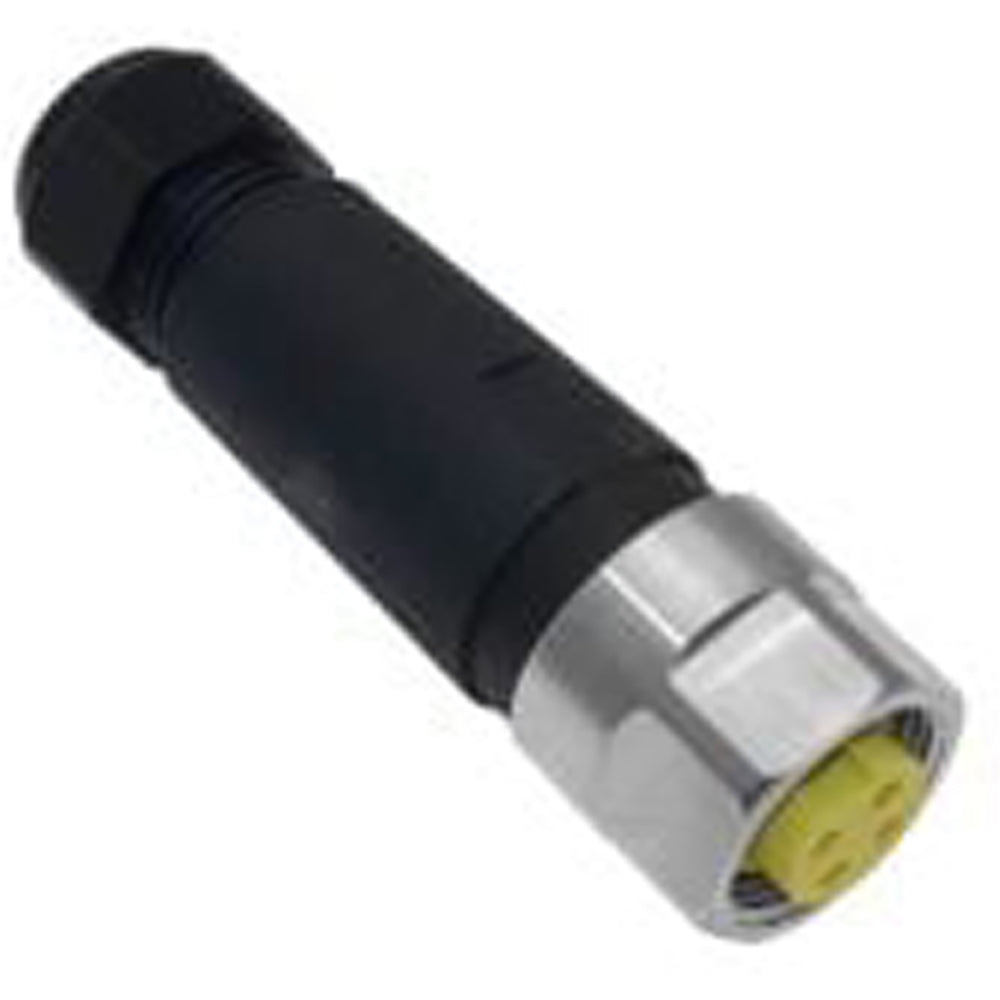

Mencom MIN-4FP-FW-SS 4 Pole Min Female Field Wire 40 A 600 V (Size I)

Product Description

The Mencom MIN-4FP-FW-SS is a 4-position MIN Size I (7/8") female field-wired connector in stainless steel that provides field wiring and plug-and-play connectivity. It is rated 40 A and 600 V with IP67 protection and accepts 10-14 AWG conductors. The connector is suitable for use with molded cables, panel-mount receptacles, and single-cable installations in industrial and outdoor junction applications.

• 4-position MIN Size I (7/8") female field-wired connector with stainless steel construction
• Rated 40 A, 600 V and IP67 protection; accepts 10-14 AWG wire
• Designed for compatibility with molded cables and panel-mount receptacles for single-cable installations

Product Highlights

4-position stainless steel MIN Size I connector; 40 A, 600 V; IP67; accepts 10–14 AWG; field-wired screw terminal contact option.

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: MIN-4FP-FW-SS

Technical Specifications

• Brand: Mencom
• Manufacturer Part Number: MIN-4FP-FW-SS
• Product Series: MIN Size I
• Connector Type: Field-wired female connector
• Connector Class: Mini (7/8 in)
• Number of Positions: 4
• Gender: Female
• Current Rating: 40 A
• Voltage Rating: 600 V
• Protection Rating: IP67
• Wire Size: 10-14 AWG
• Contact Type: Screw terminal
• Material: Stainless steel
• Body Material: Stainless steel
• Connection Thread: 7/8-16 UN
• Cable Diameter Range: 5-13 mm
• Number of Cables: 1
• Angle: Straight
• Operating Temperature: -40 to 105 C
• Approvals: cULus
• Net Weight: 0.145 lbs
