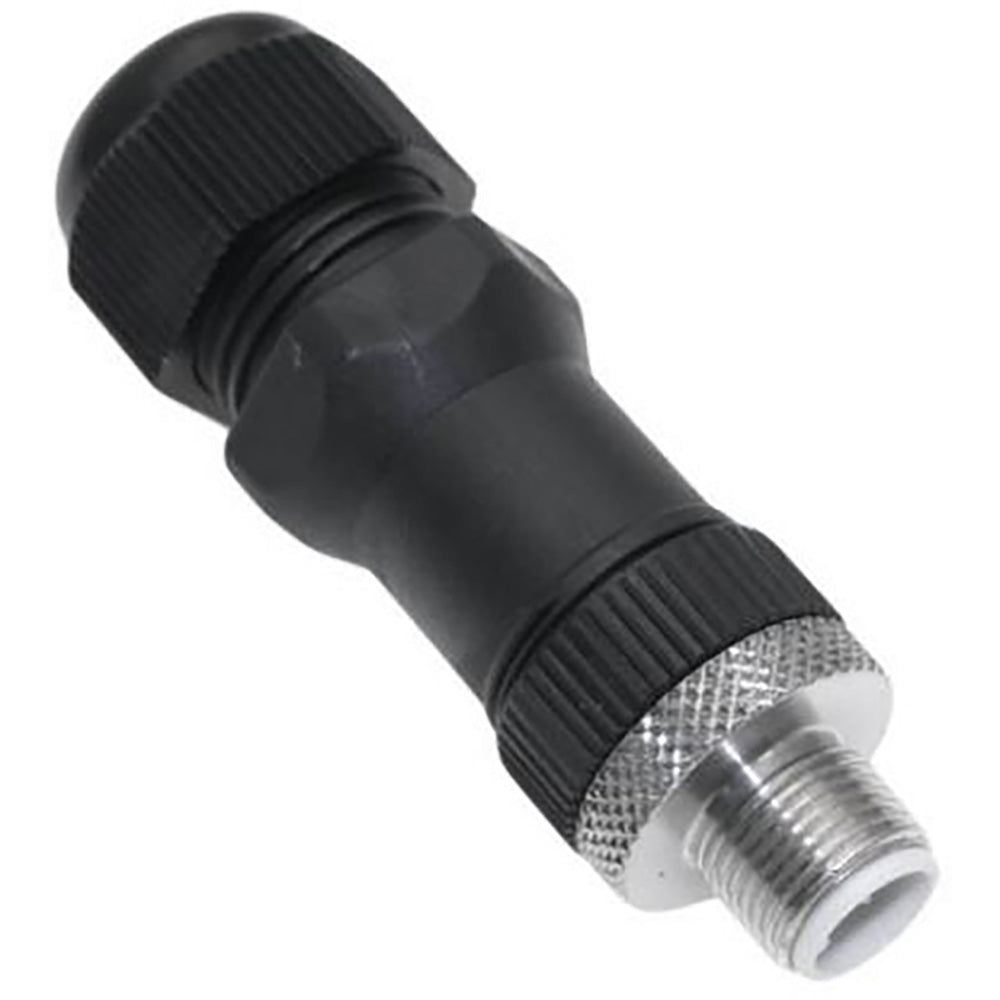

Mencom MDC-8MP-FW11 wireable 8-pole male M12 plug 60 V 2 A (straight, 5-10 mm)

Product Description

The Mencom MDC-8MP-FW11 is a field-wireable Micro-DC (M12) 8-pole male plug that accepts 5–10 mm cable via a PG11 gland and uses screw-terminal contacts for wiring. It is rated 60 V and 2 A, provides IP67 ingress protection, and operates from -25 to 85 °C. The straight M12 x 1.00 connector features a polyamide body, nickel-plated brass coupling nut, and gold-plated copper alloy contacts for industrial sensor and actuator connections.

• Field-wireable 8-pole M12 male plug (M12 x 1.00) with screw-terminal contacts and PG11 cable entry (5–10 mm).
• Electrical rating: 60 V (AC/DC) and 2 A; ingress protection IP67; operating temperature -25 to 85 °C.
• Construction: polyamide body, nickel-plated brass coupling nut, gold-plated copper alloy contacts; straight orientation.

Product Highlights

Field-wireable 8-pole M12 male plug, PG11 cable range 5–10 mm, 60 V/2 A rating, IP67 protection, screw-terminal wiring.

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: MDC-8MP-FW11

Technical Specifications

• Brand: MENCOM
• Manufacturer Part Number: MDC-8MP-FW11
• Product Series: Micro-DC (MDC)
• Connector Type: Field-wireable plug
• Connector Class: Micro (M12)
• Gender: Male
• Number of Poles: 8
• Pin Count: 8
• Connection Thread: M12 x 1.00
• Cable Diameter Range: 5-10 mm
• Cable Entry: PG11
• Orientation/Angle: Straight
• Ingress Protection: IP67
• Rated Voltage: 60 V
• AC Voltage: 60 VAC
• DC Voltage: 60 VDC
• Rated Current: 2 A
• Contact Type: Screw terminal (field wireable)
• Operating Temperature: -25 to 85 °C
• Body Material: Polyamide
• Contacts: Gold-plated copper alloy
• Coupling Nut Material: Nickel-plated brass
• Seal Material: NBR
• AWG Range: Upper AWG 20, Lower AWG 24
• Approvals: UL & CUL pending
