Mencom MDC-5MP-FW07-R-SS MDC Field Wireable 50V 4A (5 Pole Right Angle 3-6.5 mm)

Product Description

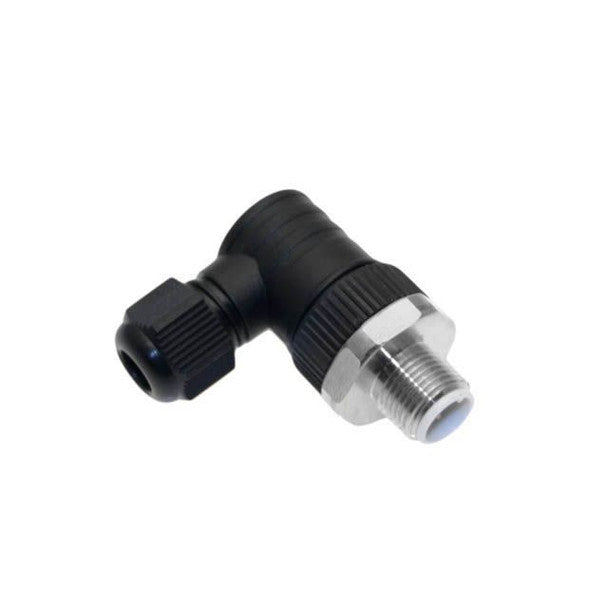

Mencom MDC-5MP-FW07-R-SS is a field-wireable MDC (M12) 5-pin male right-angle plug with a stainless steel shell and M12 coupling nut. It supports 18–24 AWG conductors, accepts cable diameters from 3 to 6.5 mm, and is rated 50 V, 4 A with IP67 protection. The connector uses a single-keyway coupling and is suited for industrial sensor, automation, and field-wiring applications requiring a compact right-angle connection.

• Field-wireable 5-pin male right-angle MDC (M12) plug with single keyway coupling
• Stainless steel shell and M12 coupling nut; IP67 rated for dust and water protection
• Supports 18–24 AWG, cable O.D. 3–6.5 mm; electrical rating 50 V, 4 A

Product Highlights

Field-wireable 5-pin M12 male right-angle plug with stainless steel shell, IP67, 3–6.5 mm gland range, 50 V 4 A rating

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: MDC-5MP-FW07-R-SS

Technical Specifications

• Brand: MENCOM
• MPN: MDC-5MP-FW07-R-SS
• Series: MDC (A-coded)
• Product Type: Field wireable plug
• Component Type: Field wireable
• Pin Count: 5
• Gender: Male
• Orientation: Right angle
• Mating Thread / Type: M12
• Coupling Thread Gender: Male
• Shell / Coupling Nut Material: Stainless steel
• Cable O.D. Range: 3-6.5 mm
• AWG Range: 18-24
• Voltage Rating: 50 V
• Current Rating: 4 A
• IP Rating: IP67
• Shielding: No
• Ground Wire: No
