Mencom MDC-5MFR-TM M12 Receptacle 4 A (5 Pole Thru-Mount Straight)

Product Description

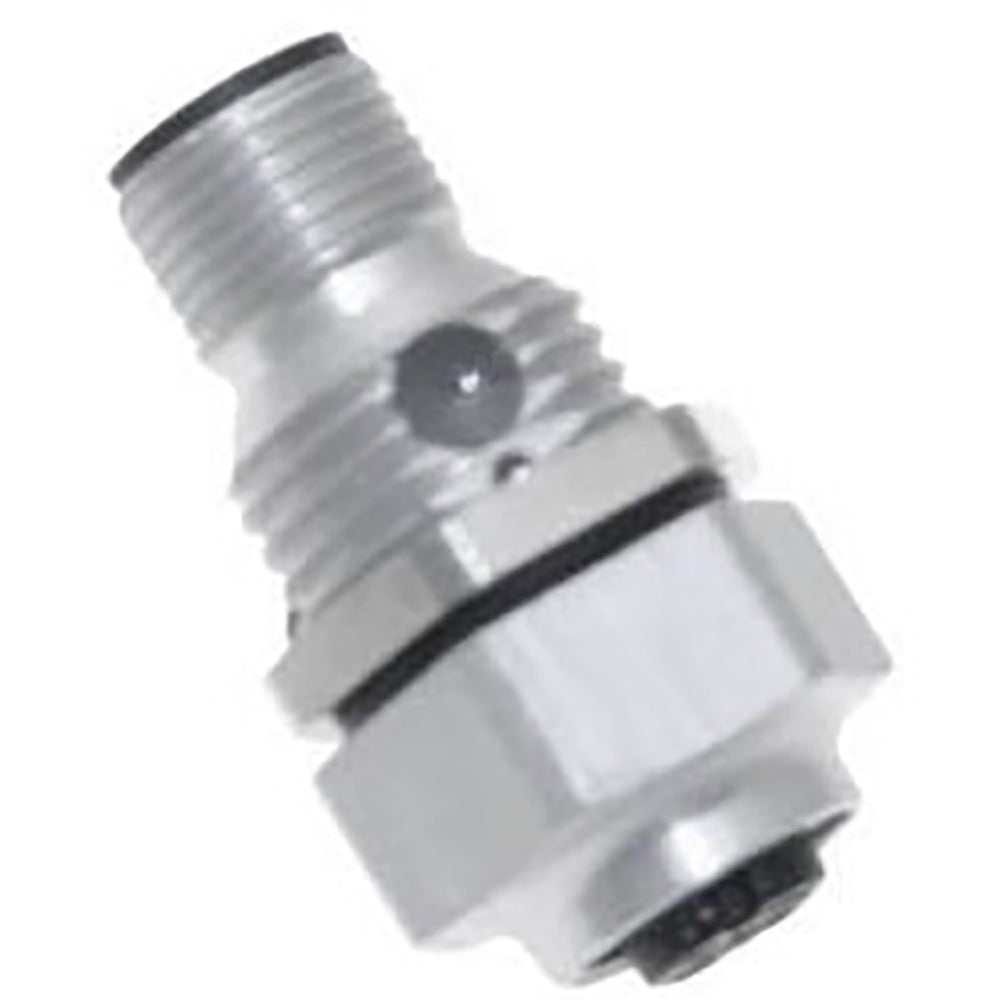

Mencom MDC-5MFR-TM is a 5-pin M12 (MDC) male/female straight thru-panel receptacle rated 4 A and 300 V with IP69 ingress protection. The unit features a nickel-plated brass shell and coupling nut, gold-plated copper alloy contacts, and a through-panel mount with included nut. Operating temperature range is -40 C to 105 C and the connector uses an M12 mating thread with a single keyway for industrial quick-disconnect applications.

• 5-pin M12 (MDC) male/female straight thru-panel receptacle; through-panel mount with nut included
• Electrical rating: 4 A, 300 V; ingress protection IP69; operating temperature -40 C to 105 C
• Nickel-plated brass shell and coupling nut with gold-plated copper alloy contacts; M12 x 1.00 mating thread

Product Highlights

5-pin M12 thru-panel receptacle, 4 A/300 V, IP69 ingress protection, nickel-plated brass shell, gold-plated contacts

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: MDC-5MFR-TM

Technical Specifications

• Brand: Mencom
• Manufacturer Part Number: MDC-5MFR-TM
• Series: MDC (A-coded)
• Product Type: Receptacle
• Connector Class: M12 (MDC)
• Pin Count: 5
• Gender: Male/Female
• Orientation: Male Straight / Female Straight
• Mounting Style: Through-panel mount
• Mating Thread: M12 x 1.00
• Mounting Threads: PG9
• Shell / Coupling Nut Material: Nickel plated brass
• Contacts: Gold plated copper alloy
• Rated Current: 4 A
• Rated Voltage: 300 V
• Ingress Protection: IP69
• Operating Temperature: -40 C to 105 C (-40 F to 221 F)
• Approvals: UL, CUL, cULus
• Dimensions: 1.46 in Length x 0.75 in Height
• Weight: 0.10 lbs
• Number of Conductors: 5
