Mencom MDC-5FR-BM-2M-18 Micro-DC Cordset 4 A 300 V (2 m / Straight)

Product Description

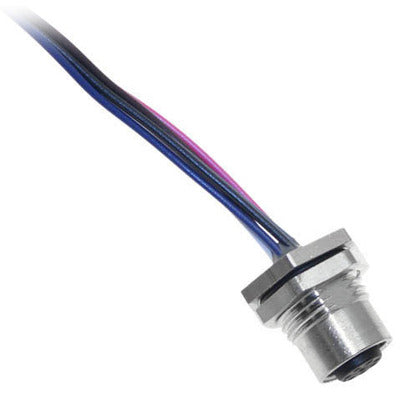

Mencom MDC-5FR-BM-2M-18 is a 5-pin Micro-DC (M12) back-mount female cordset with flying leads, 18 AWG conductors and a 2 m length. The assembly is rated IP67 for dust and water resistance, supports up to 300 VAC / 300 VDC and 4 A, and operates from -40 to 105 C. It uses PG9 mounting threads and is cULus approved for industrial automation connections.

• Micro (M12) 5-pin back-mount female receptacle to flying leads, 18 AWG, 2 m length
• Electrical ratings: up to 300 VAC / 300 VDC and 4 A; operating temperature -40 to 105 C
• Environmental and approvals: IP67 protection rating; mounting threads PG9; cULus approved

Product Highlights

5-pin M12 back-mount female cordset, 2 m length, 18 AWG, IP67, 300 VAC/300 VDC 4 A, PG9 mount, cULus

Product Information

Standard Information

• Brand: MENCOM
• Manufacturer Part Number: MDC-5FR-BM-2M-18

Technical Specifications

• Manufacturer Part Number: MDC-5FR-BM-2M-18
• Manufacturer: Mencom
• Product Series: Micro-DC
• Description: 5 PL FM BK MT RCP 18AWG 2M
• Connector Type: Micro (M12)
• Connection Configuration: Female to flying leads
• Receptacle Description: Back-mount receptacle
• Receptacle Gender: Female
• Number of Pins: 5
• Number of Wires: 5
• Wire Gauge: 18 AWG
• Length: 2 m
• Angle: Straight
• Mounting: Back Mount
• Mounting Threads: PG9
• Connection: M12 x 1.00
• Protection Rating: IP67
• Max Voltage: 300 VAC, 300 VDC
• Current Rating: 4 A
• Operating Temperature: -40 to 105 C
• Approvals: cULus
• Family Series: Mencom Cordsets, Micro-DC Series
• Connector Class: Micro (M12)
